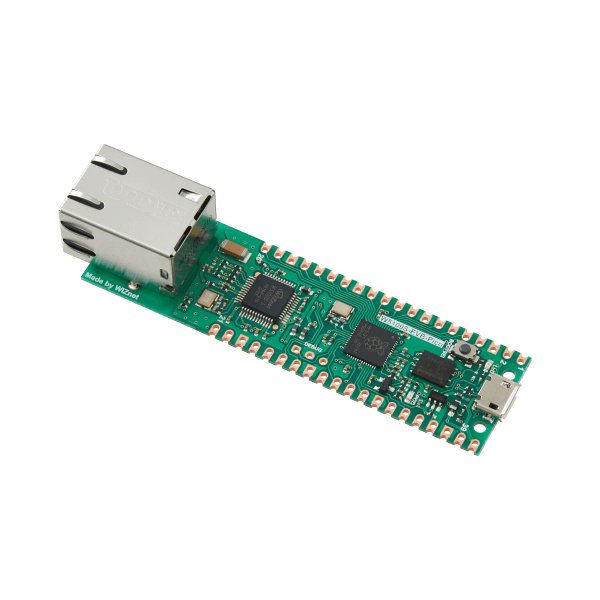

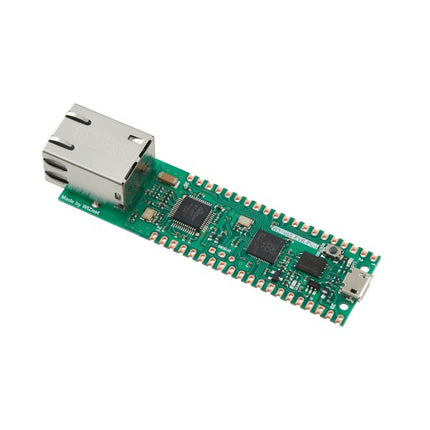

WIZnet W5100S-EVB-Pico RP2040-based Evaluation Board

  • FabrikantWIZnet

Omschrijving

Features

  • RP2040 microcontroller with 2 MB Flash
    • Dual-core cortex M0+ at up to 133 MHz
    • 264 KB multi-bank high performance SRAM
    • External Quad-SPI Flash with eXecute In Place (XIP)
    • High performance full-crossbar bus fabric
    • 30 multi-function General Purpose IO (4 can be used for ADC)
      • 1.8-3.3 V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3 V)
    • 12-bit 500 ksps Analogue to Digital Converter (ADC)
    • Various digital peripherals
      • 2× UART, 2× I²C, 2× SPI, 16× PWM channels
      • 1× Timer with 4 alarms, 1× Real Time Counter
    • 2× Programmable IO (PIO) blocks, 8 state machines total
    • Flexible, user-programmable high-speed IO
    • Can emulate interfaces such as SD Card and VGA
  • Includes W5100S
    • Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
    • Supports 4 Independent Hardware SOCKETs simultaneously
    • Internal 16 KB Memory for TX/ RX Buffers
    • SPI Interface
  • Micro-USB B port for power and data (and for reprogramming the Flash)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1' through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto Negotiation
    • Full / Half Duplex
    • 10 / 100 Based
  • Built-in RJ45 (RB1-125BAG1A)
  • Built-in LDO (LM8805SF5-33V)

Downloads

Productformulier

Features RP2040 microcontroller with 2 MB Flash Dual-core cortex M0+ at up to 133 MHz 264 KB multi-bank high performance... Lees meer

€ 14,95 incl. BTW
Leden € 13,46

      Rond de feestdagen kan de verzending langer duren dan gebruikelijk.

    Details

    SKU: 19971
    EAN: 019971

    Omschrijving

    Features

    • RP2040 microcontroller with 2 MB Flash
      • Dual-core cortex M0+ at up to 133 MHz
      • 264 KB multi-bank high performance SRAM
      • External Quad-SPI Flash with eXecute In Place (XIP)
      • High performance full-crossbar bus fabric
      • 30 multi-function General Purpose IO (4 can be used for ADC)
        • 1.8-3.3 V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3 V)
      • 12-bit 500 ksps Analogue to Digital Converter (ADC)
      • Various digital peripherals
        • 2× UART, 2× I²C, 2× SPI, 16× PWM channels
        • 1× Timer with 4 alarms, 1× Real Time Counter
      • 2× Programmable IO (PIO) blocks, 8 state machines total
      • Flexible, user-programmable high-speed IO
      • Can emulate interfaces such as SD Card and VGA
    • Includes W5100S
      • Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
      • Supports 4 Independent Hardware SOCKETs simultaneously
      • Internal 16 KB Memory for TX/ RX Buffers
      • SPI Interface
    • Micro-USB B port for power and data (and for reprogramming the Flash)
    • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1' through-hole pins also with edge castellations
    • 3-pin ARM Serial Wire Debug (SWD) port
    • 10 / 100 Ethernet PHY embedded
    • Supports Auto Negotiation
      • Full / Half Duplex
      • 10 / 100 Based
    • Built-in RJ45 (RB1-125BAG1A)
    • Built-in LDO (LM8805SF5-33V)
