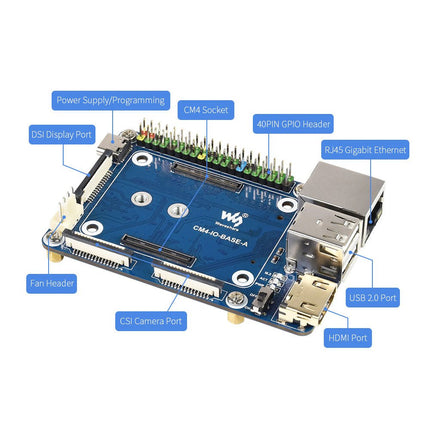

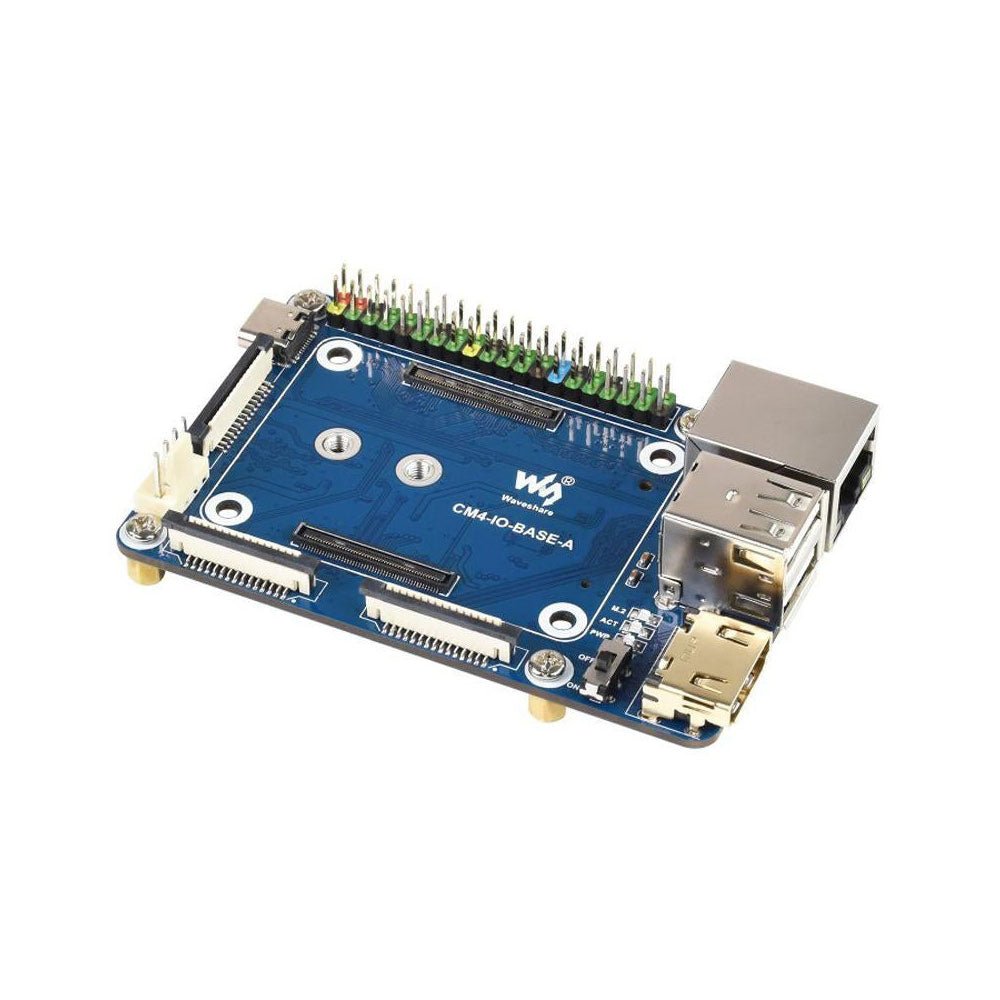

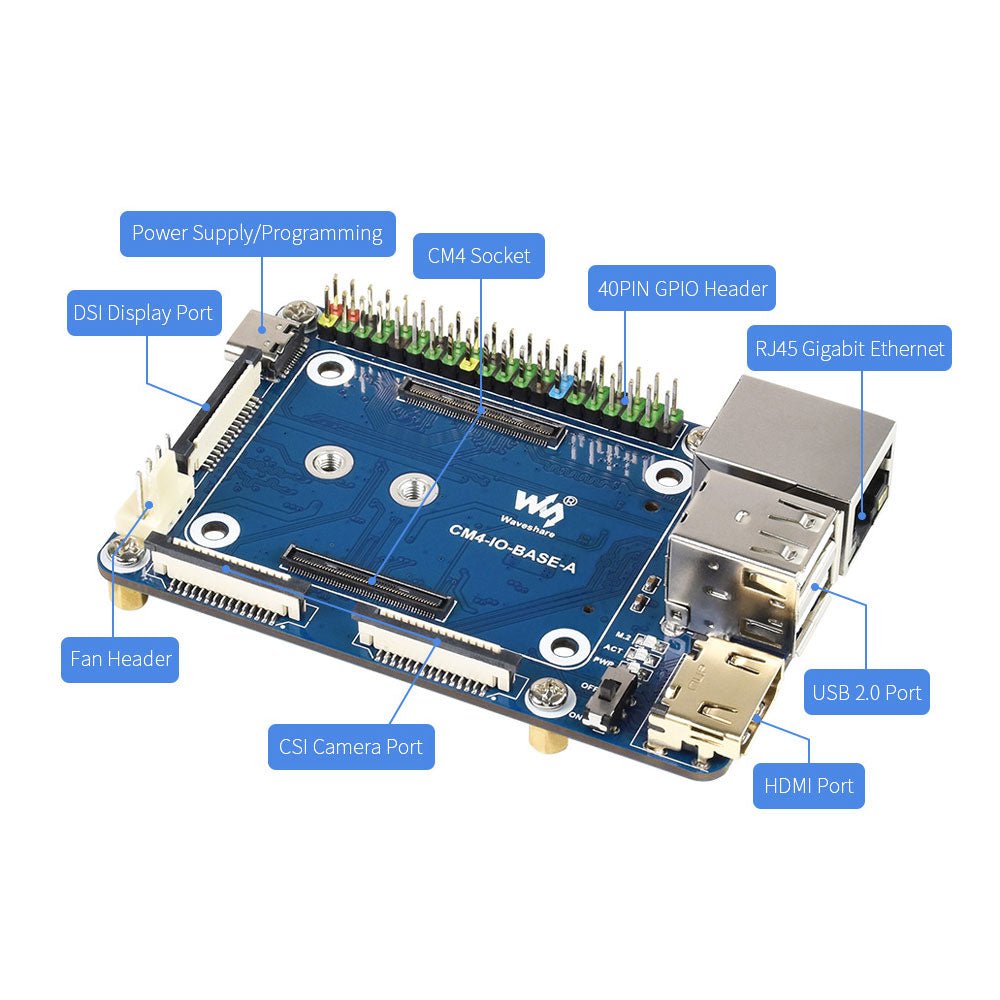

Waveshare Mini Base Board (A) for Raspberry Pi Compute Module 4

  • FabrikantWaveshare

Omschrijving

Specifications

CM4 socket Suitable for all variants of Compute Module 4
Networking Gigabit Ethernet RJ45 connector
M.2 M KEY, supports communication modules or NVME SSD
Connector Raspberry Pi 40-PIN GPIO header
USB 2x USB 2.0 Type A
2x USB 2.0 via FFC connector
Display MIPI DSI display port (15-pin 1.0 mm FPC connector)
Camera 2x MIPI CSI-2 camera port (15-pin 1.0 mm FPC connector)
Video 2x HDMI port (including one port via FFC connector), supports 4K 30fps output
RTC N/A
Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan header No fan control, 5 V
Power input 5 V
Dimensions 85 x 56 mm

Included

  • 1x CM4-IO-BASE-A
  • 1x SSD mounting screw

Downloads

Productformulier

Specifications CM4 socket Suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 connectorM.2 M KEY, supports communication... Lees meer

€ 24,95 incl. BTW
Leden € 22,46

    • Vandaag verstuurd? Je hebt nog Nov 17, 2024 17:00:00 +0100

    Details

    SKU: 20037
    EAN: 19887

    Omschrijving

    Specifications

    CM4 socket Suitable for all variants of Compute Module 4
    Networking Gigabit Ethernet RJ45 connector
    M.2 M KEY, supports communication modules or NVME SSD
    Connector Raspberry Pi 40-PIN GPIO header
    USB 2x USB 2.0 Type A
    2x USB 2.0 via FFC connector
    Display MIPI DSI display port (15-pin 1.0 mm FPC connector)
    Camera 2x MIPI CSI-2 camera port (15-pin 1.0 mm FPC connector)
    Video 2x HDMI port (including one port via FFC connector), supports 4K 30fps output
    RTC N/A
    Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
    Fan header No fan control, 5 V
    Power input 5 V
    Dimensions 85 x 56 mm

    Included

    • 1x CM4-IO-BASE-A
    • 1x SSD mounting screw
