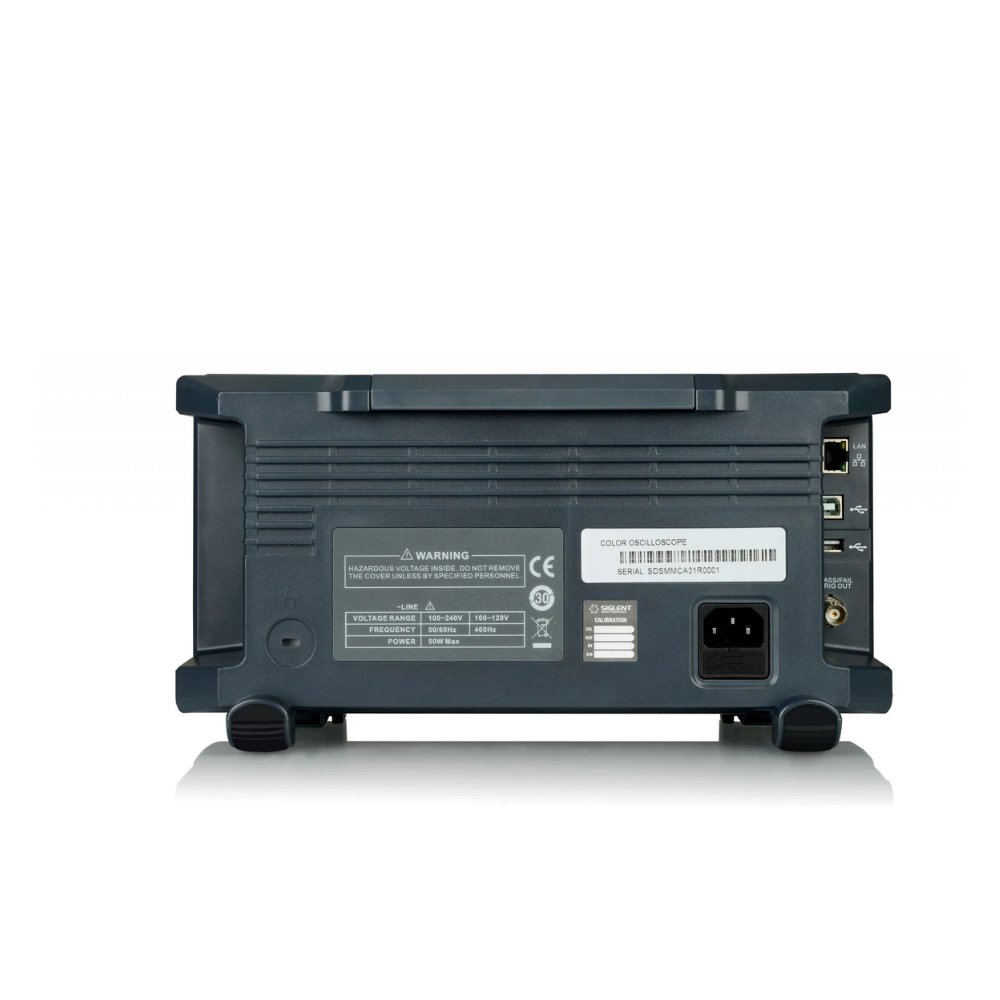

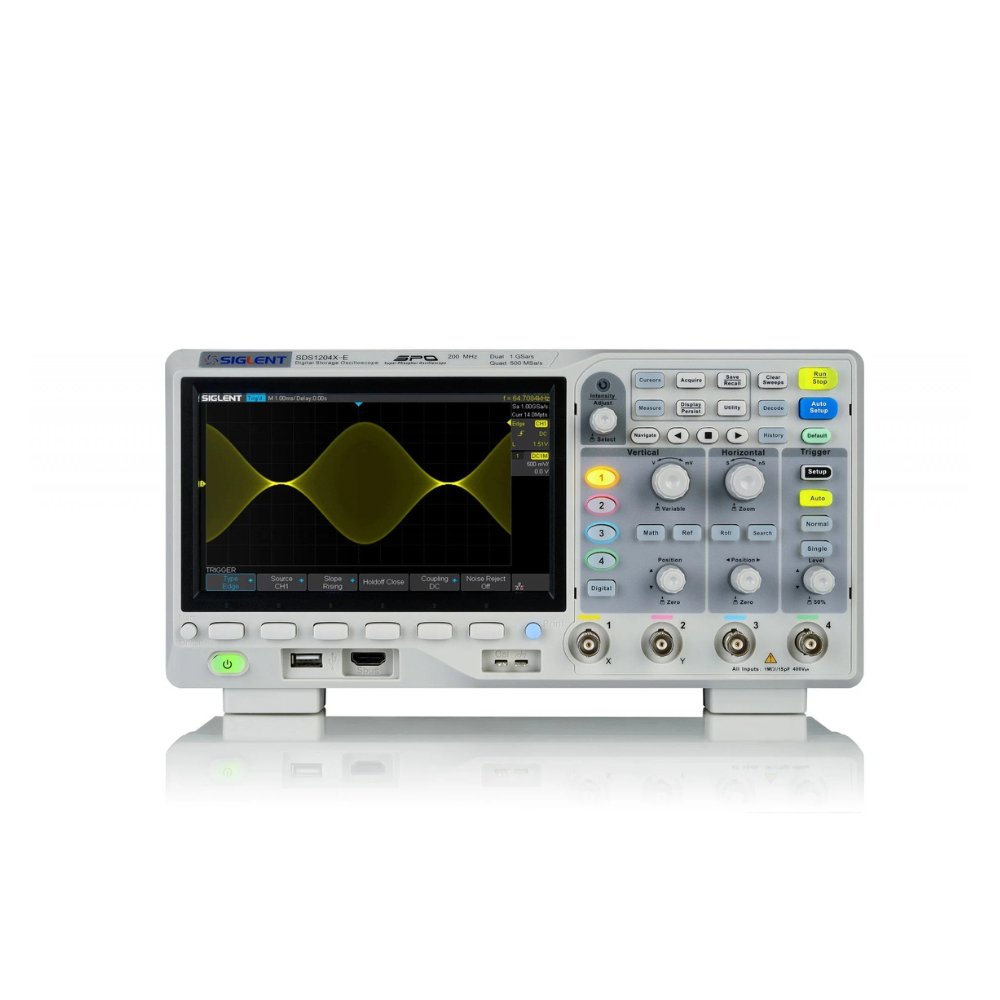

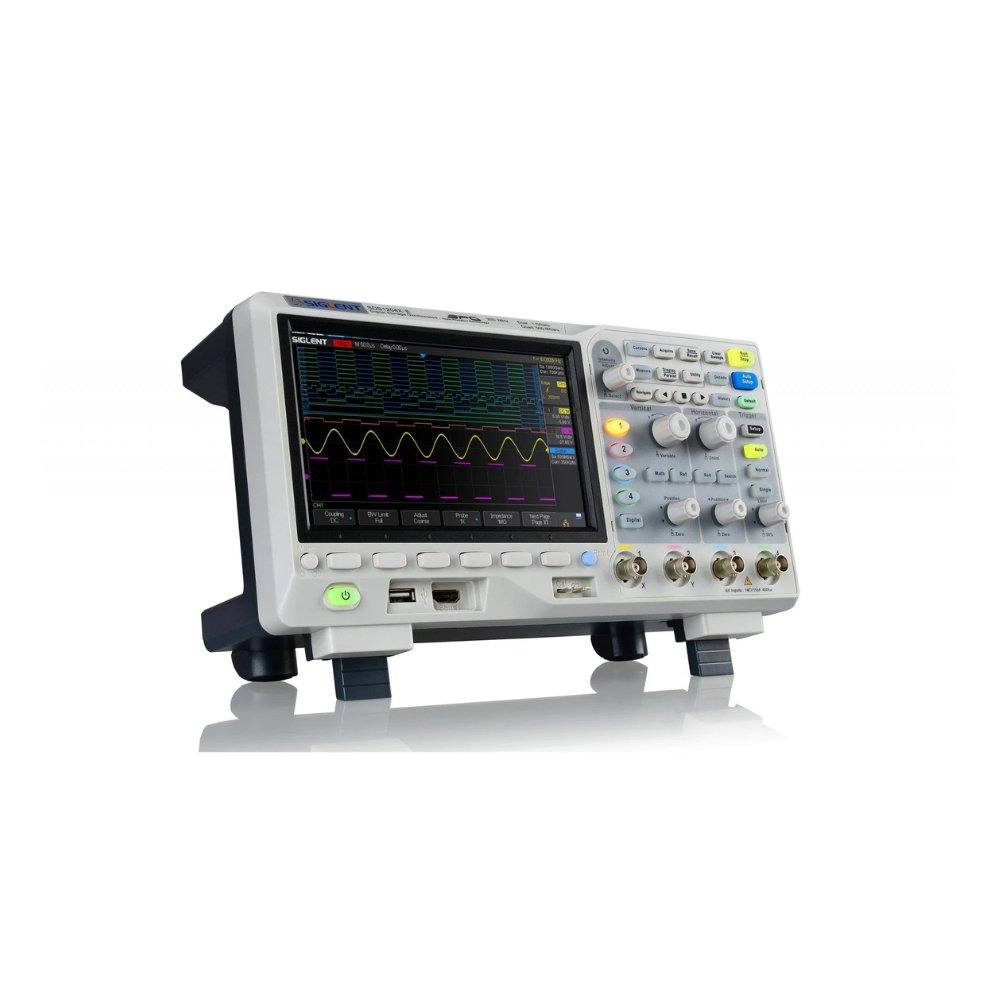

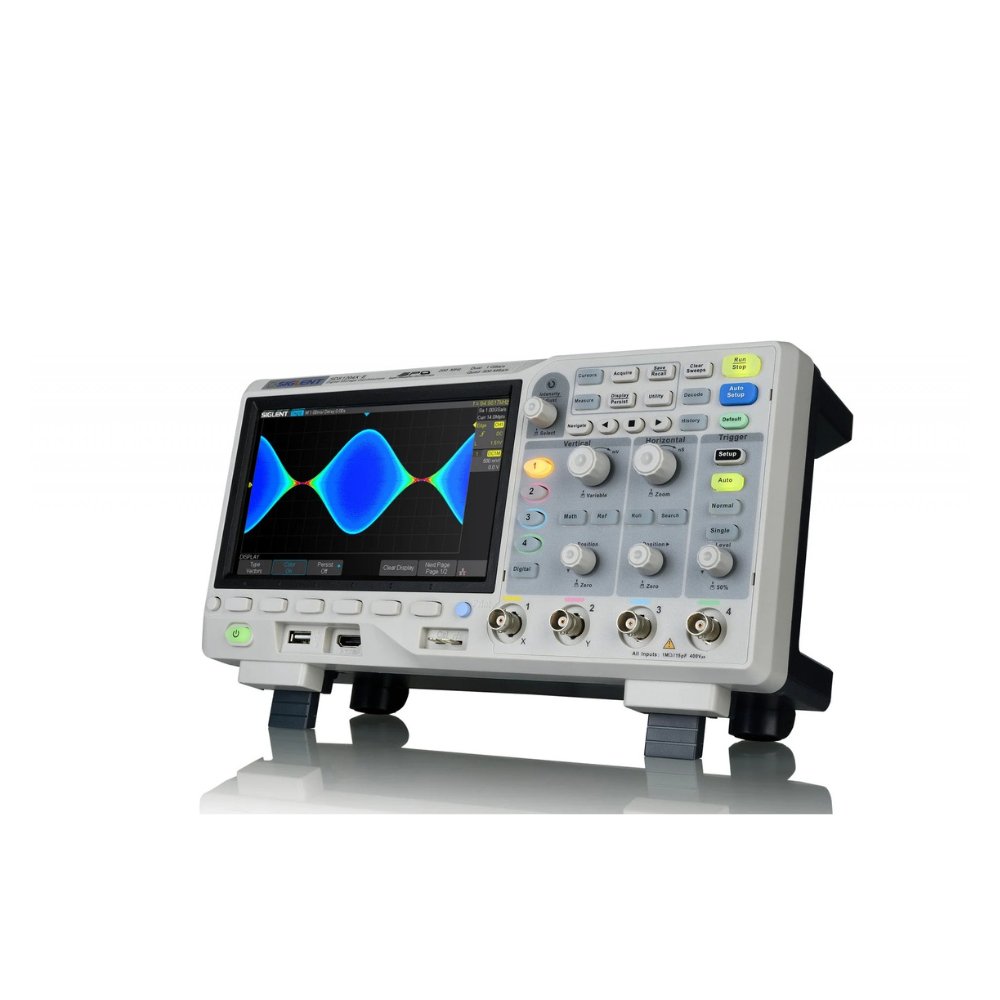

| Bandwidth |
200 MHz |
| Sampling Rate (Max.) |
1 GSa/s |
| Channels |
2CH+EXT
4CH |
| Memory Depth (Max.) |
7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) |
| Waveform Capture Rate (Max.) |
100,000 wfms/s (normal mode), 400,000 wfms/s (sequence mode) |
| Trigger Types |
Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video |
| Serial Trigger (Standard) |
I2C, SPI, UART/RS232, CAN, LIN |
| Decode Type (Standard) |
I2C, SPI, UART/RS232, CAN, LIN |
16 Digital Channels
(four channel series only, option) |
Maximum waveform capture rate up to 1 GSa/s, Record length up to 14 Mpts/CH |
USB AWG module
(four channel series only, option) |
One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts |
| Bode plot ( four channel series only) |
Minimum start frequency of 10 Hz, minimum scan bandwith of 500 Hz,
maximum scan bandwidth of 120 MHz (dependent on Oscilloscope and AWG bandwidth),
500 maximum scan frequency points |
USB WIFI adapter
(four channel series only, option) |
802.11b/g/b, WPA-PSK, the adapter must be supplied by Siglent to ensure proper functioning |
