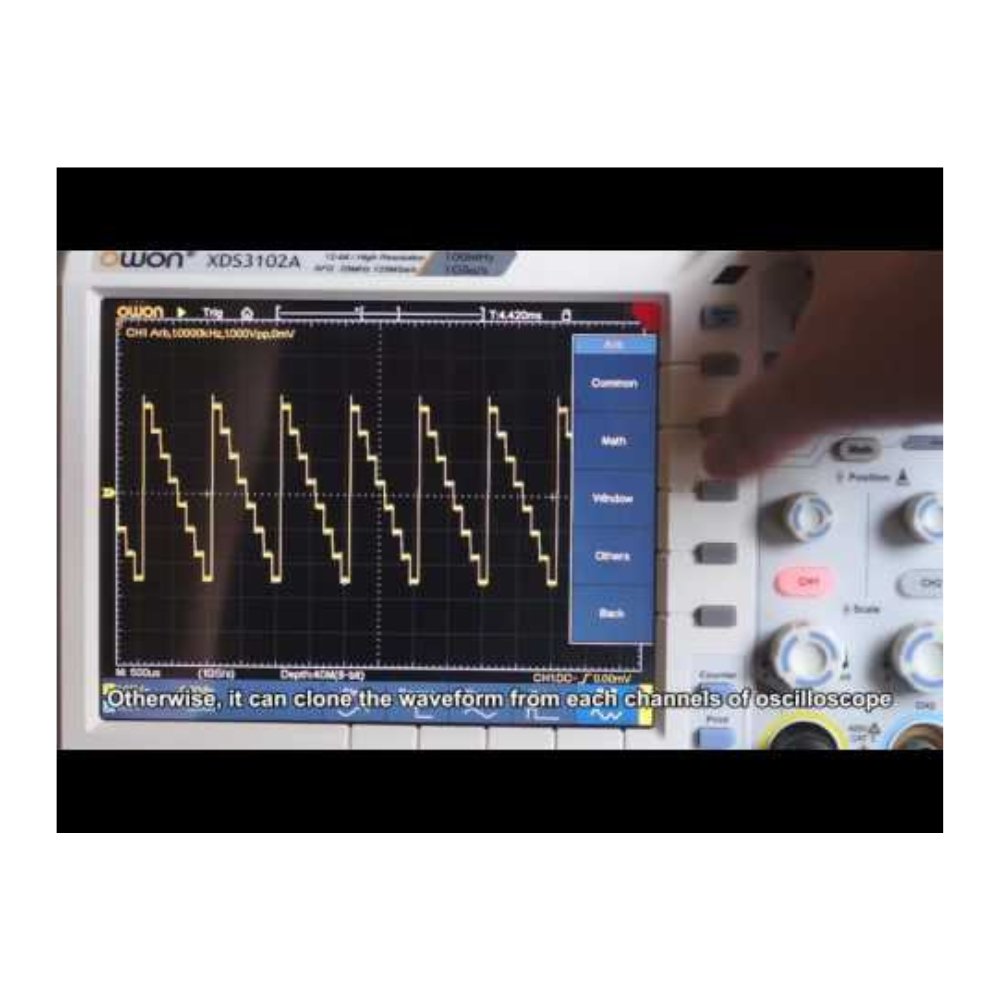

OWON XDS3102A (3-in-1) 2-kanaals Oscilloscoop (100 MHz) + Multimeter + Signaalgenerator

  • FabrikantOWON

Omschrijving

The OWON XDS3102A is a 12-bit 2-channel digital storage oscilloscope (100 MHz) with digital multimeter and 2-channel arbitrary waveform generator (25 MHz). It features a touchscreen, a VGA output, WiFi and a 13200 mA battery.

Performance

  • 8-bit, 12-bit or 14-bit high-resolution ADC, restoring the waveform detail fully
  • 40M record length, max 75,000 wfms/s waveform refresh rate
  • Ow background noise, vertical sensitivity in 1 mV/div - 10 V/div
  • Multi-trigger, and bus decoding function
  • SCPI and LabVIEW supported

Features

  • Ultra-thin body-design, less space accommodation
  • Multi-interface integration – USB host, USB device, USB port for PictBridge, LAN, AUX, and more
  • VGA port – a better solution for video expansion, and teaching demonstration
  • 8 inch 800 x 600 high-resolution LCD
  • Optional multi-point touch screen, more user-friendly operation experience

Specifications

Bandwidth 100 MHz
Sample Rate 1 GS/s
Vertical Resolution (A/D) 12 bits
Record length 40M
Horizontal Scale (s/div) 2 ns/div - 1000s/div, step by 1 - 2 - 5
Channel 2 + 1 (external)
Display 8" color LCD, 800 x 600 pixels
Waveform Math   ?, ?, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I²C, SPI, RS232
Bus Decoding I²C, SPI, RS232
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN
Power Supply 100-240 V AC, 50/60 Hz, CAT II
Power Consumption ?15 W
Fuse 2A, T class, 250 V
Dimension 340 x 177 x 90 mm
Weight 2.6 kg
