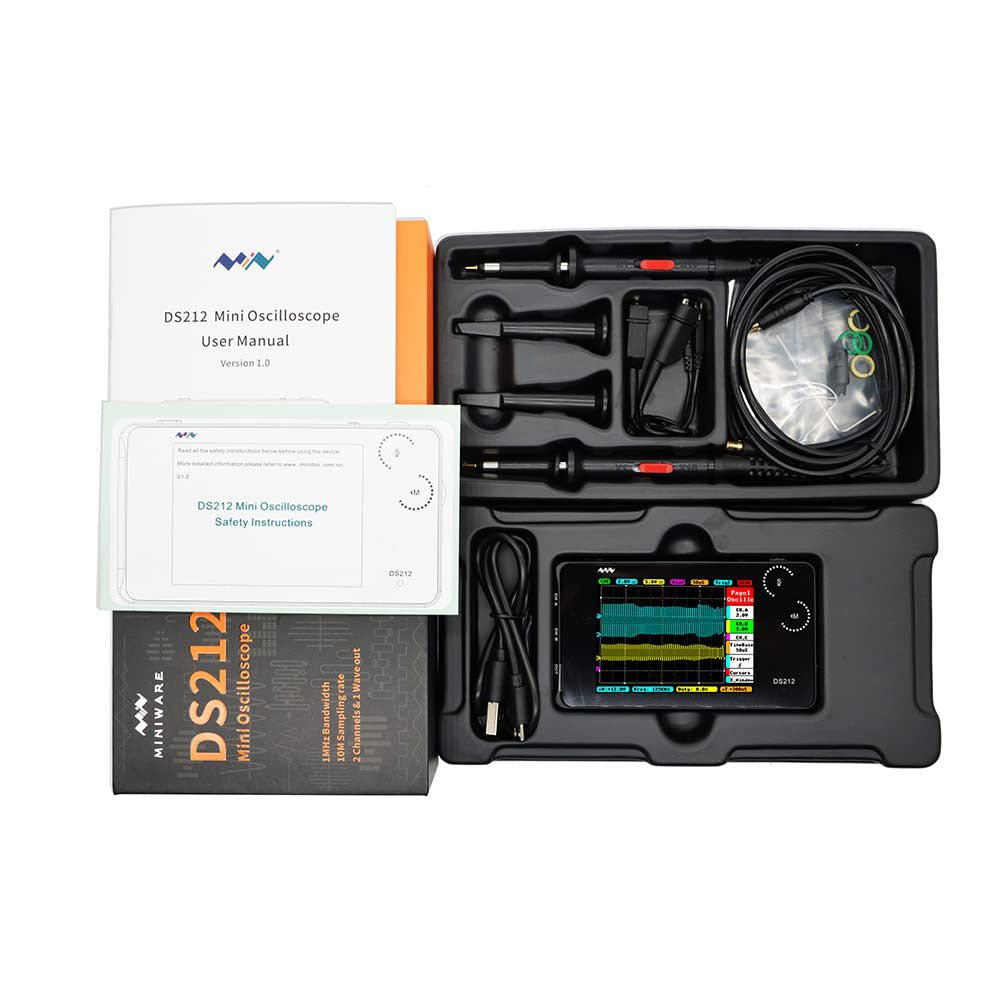

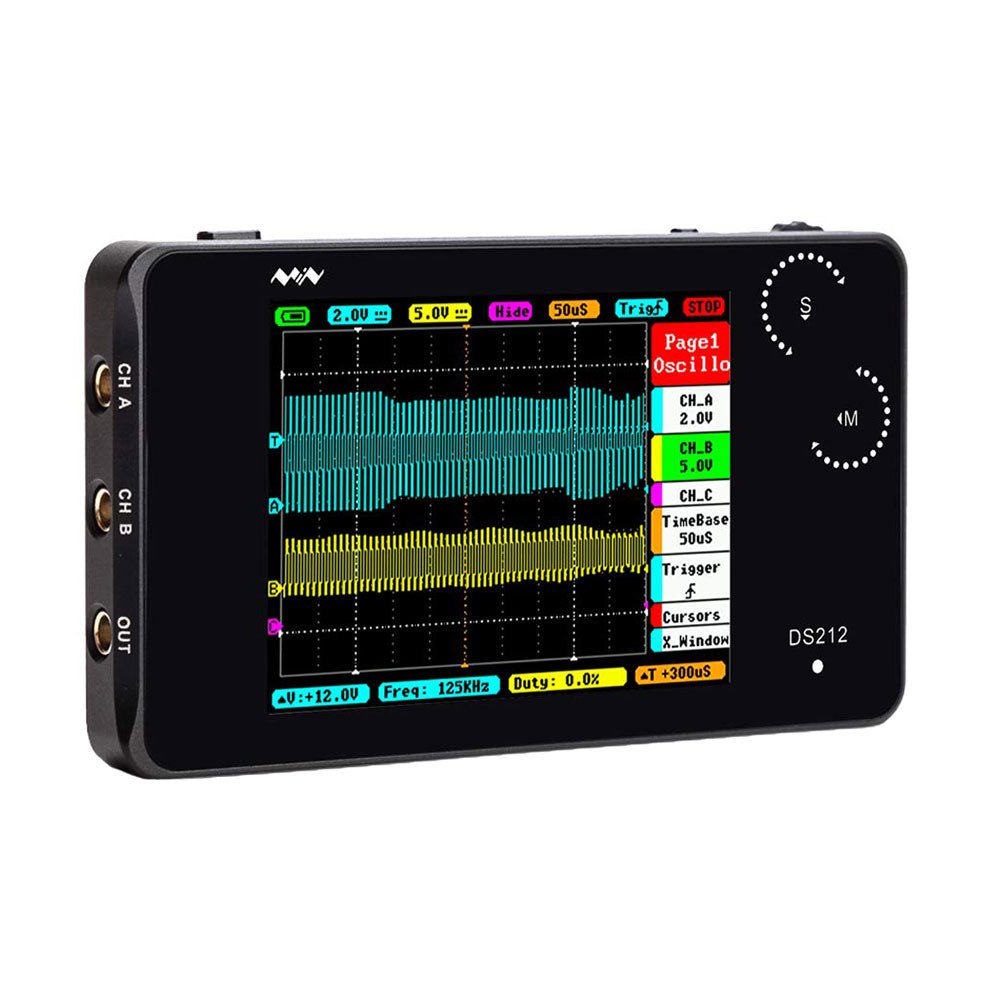

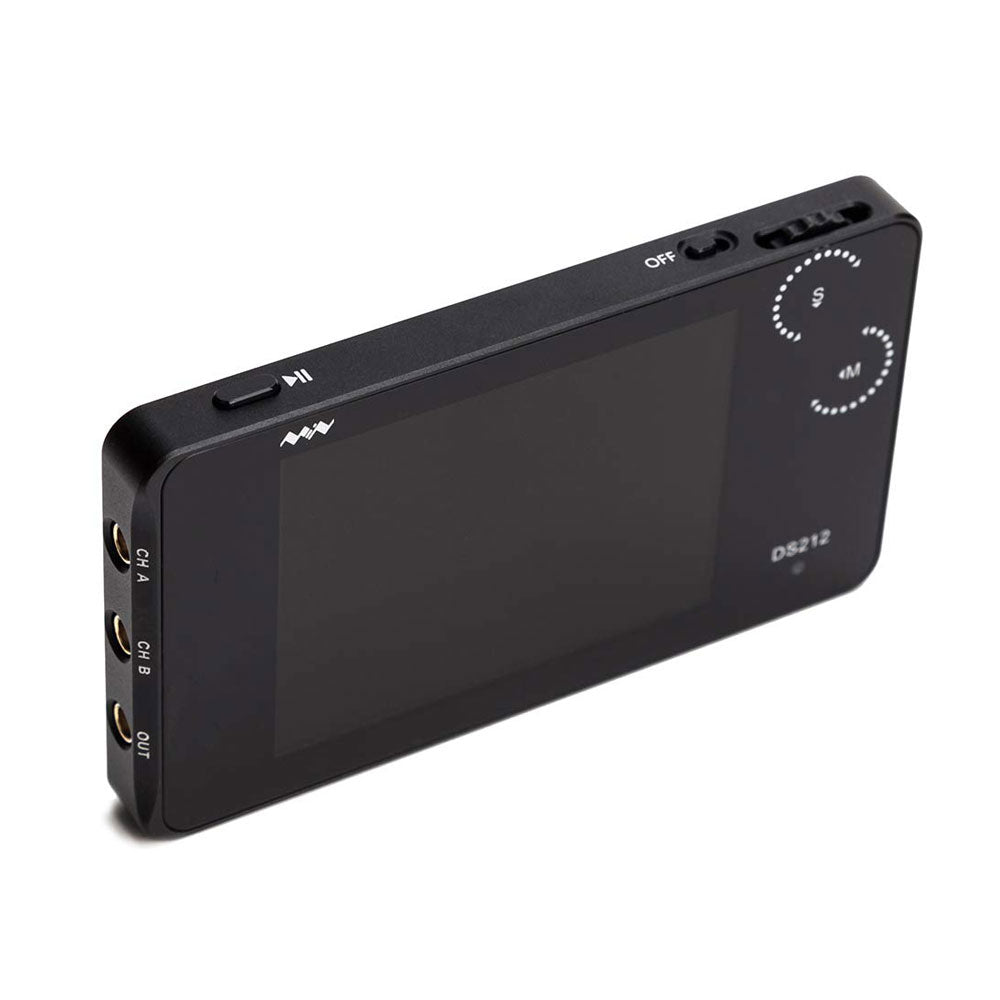

Miniware DS212 2-ch Mini Oscilloscope (1 MHz)

  • FabrikantMiniware

Omschrijving

Features

  • Synchronous mode: Auto, Normal, Single, None, Scan
  • Rising/Falling edge trigger
  • Modes of vertical precise, horizontal precise measurement and triggering threshold
  • Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg
  • Inbuilt signal generator/10 Hz-1 MHz square wave (duty adjustable) or 10 Hz-20 KHz
  • Sine/Square/Triangle/Sawtooth wave

Specifications

Analog bandwidth 1 MHz
Max sample rate 10 Msa/s
Max sample memory depth 8K
Analog input impedance 1 M?
Max input voltage ±40 V (X1)
Coupling AC/DC
Vertical sensitivity 20 mv/Div~10 V/Div (1-2-5)
Horizontal sensitivity 1 uS/Div~2 S/Div (1-2-5)
Storage Built-in 8 MB U disk storage for waveform data and images
Power supply Internal 550 mAh Lithium battery, recharging through Micro USB port
Display 2.8' Full Color TFT LCD (320x240 pixels)
Dimensions 100 x 56.5 x 10.7 mm

Downloads

Productformulier

Features Synchronous mode: Auto, Normal, Single, None, Scan Rising/Falling edge trigger Modes of vertical precise, horizontal precise measurement and triggering... Lees meer

€ 149,95 incl. BTW
Leden € 134,96

      Details

      SKU: 20205
      EAN: 020205
