Omschrijving

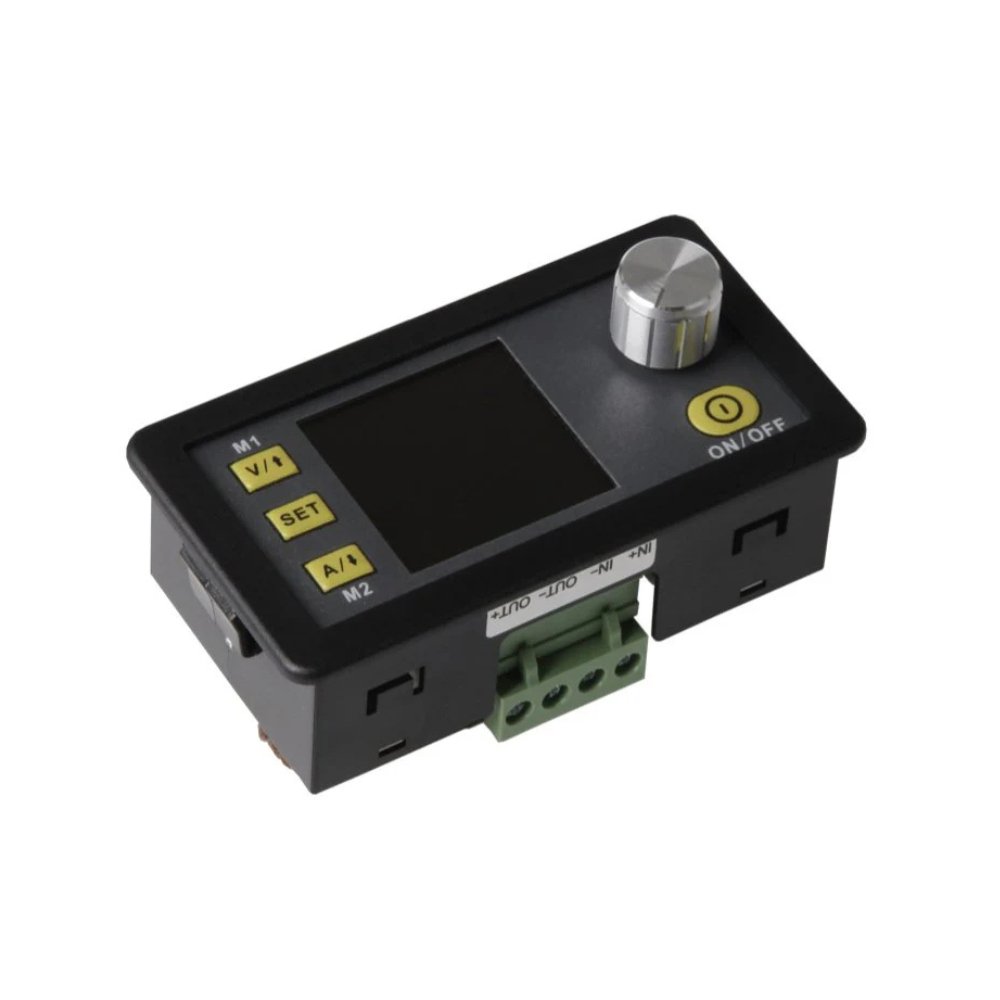

This power supply combines analog and digital technologies in an advanced design, offering outstanding precision and accuracy. The adjustable output reaches up to 50 V or 5 A and can be precisely configured in 10 mV or 1 mA steps.

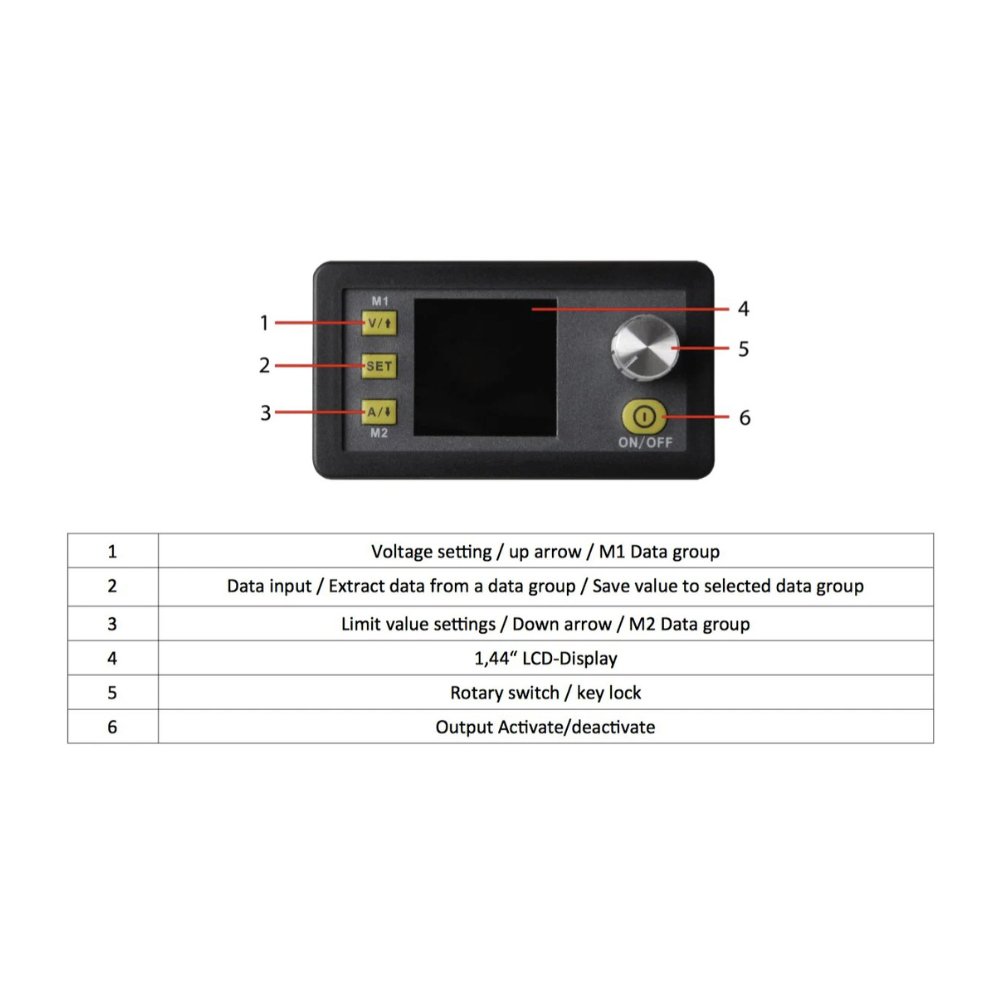

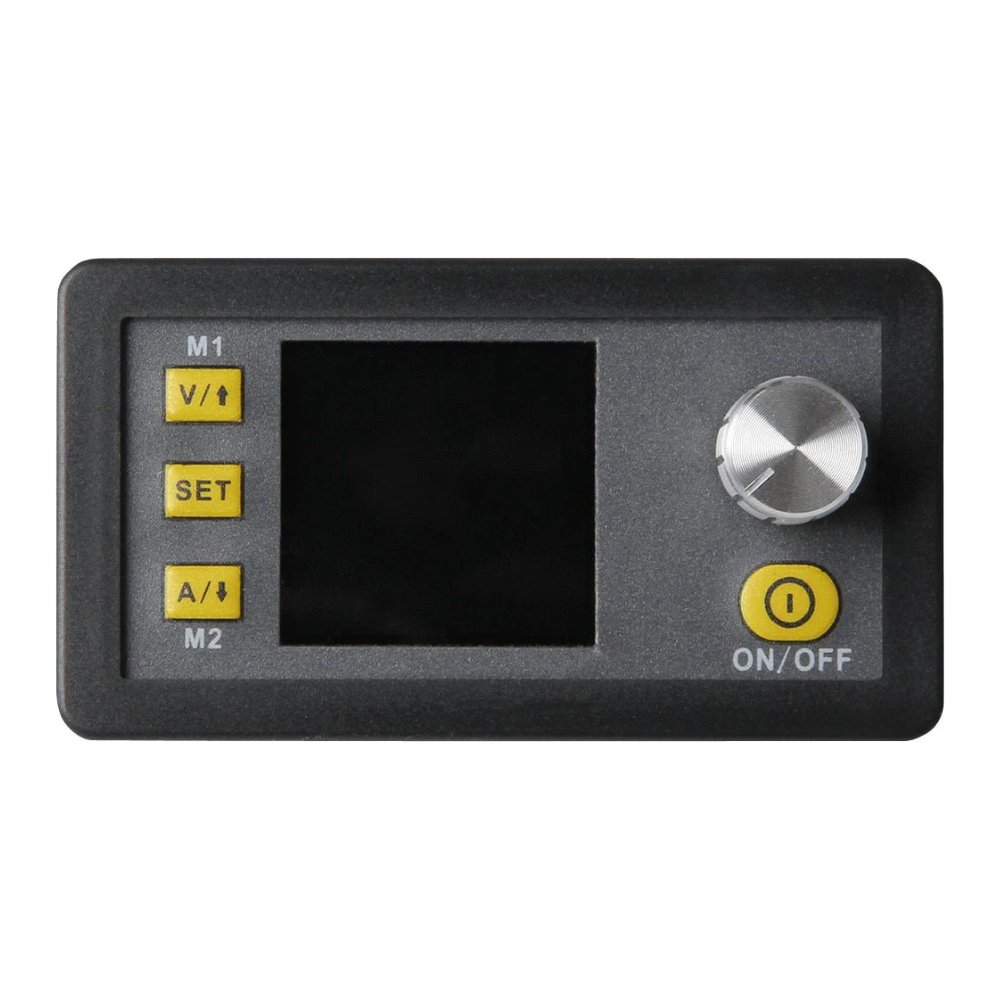

The operation of the device has been optimised for particularly simple operation and the colour display offers a particularly detailed and comprehensive presentation of information. Among other things, the current voltage and current values, pre-settings and output powers can be depicted here. Dynamic notification symbols also provide a clear overview.
The additional settings menu offers maximum control of overcurrent and overvoltage values as well as other parameters. The DPS5005 offers modern design and advanced technology in a compact package, making it the ideal power supply.
Specificaties
| Input voltage |
6-55 V |
| Output voltage |
0-50 V |
| Output current |
0-5 A |
| Output power |
0-250 W |
| Weight |
88 g |
| Display size |
1,44" |
| Case cut-out |
39 x 71 mm |
| Dimensions |
42 x 45 x 80 mm |
| Accuracy of the output voltage |
±0,5% |
| Accuracy of the output current |
±0,5% |
