Omschrijving

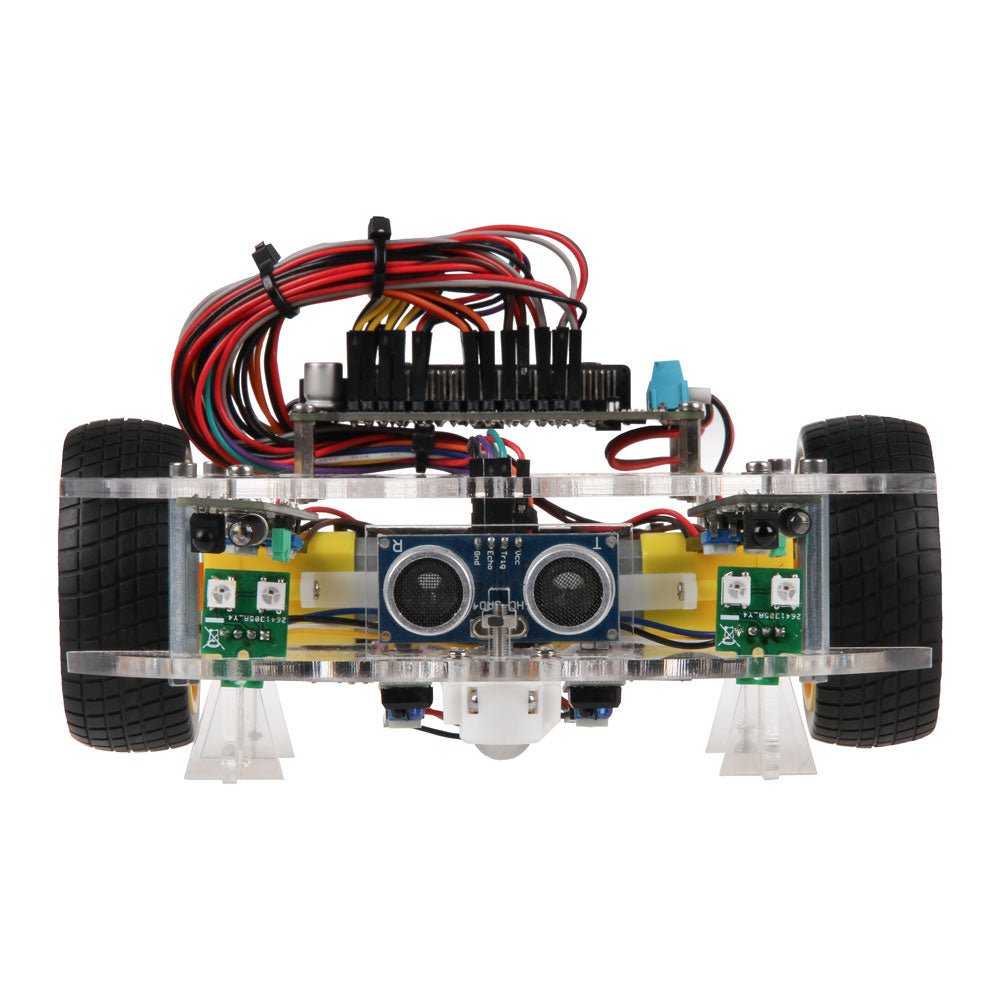

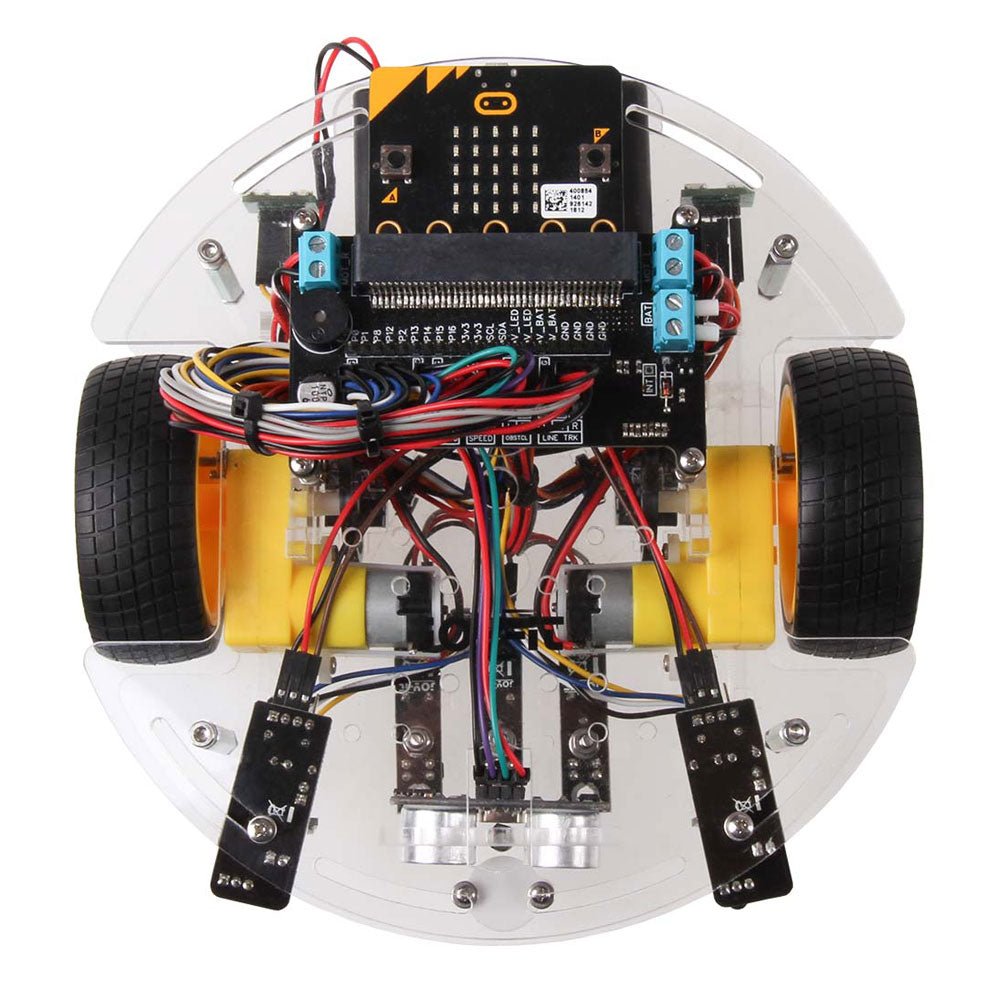

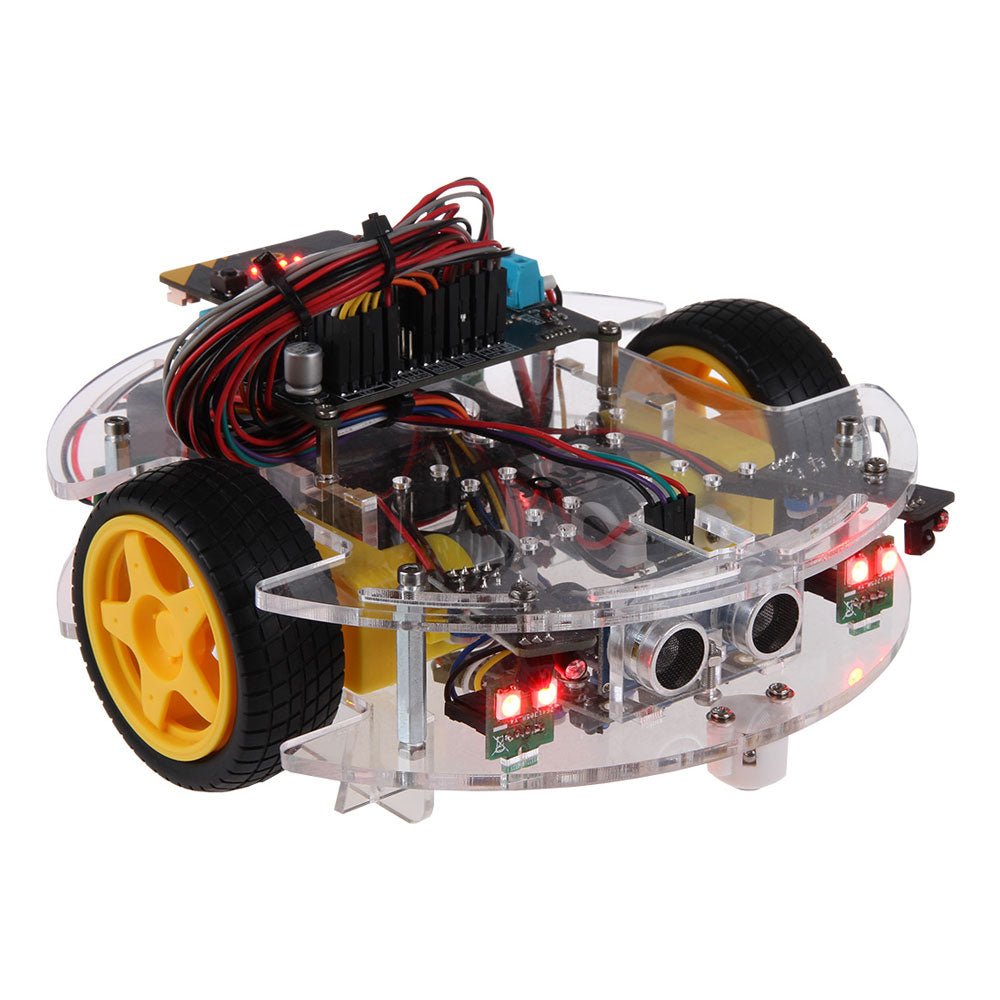

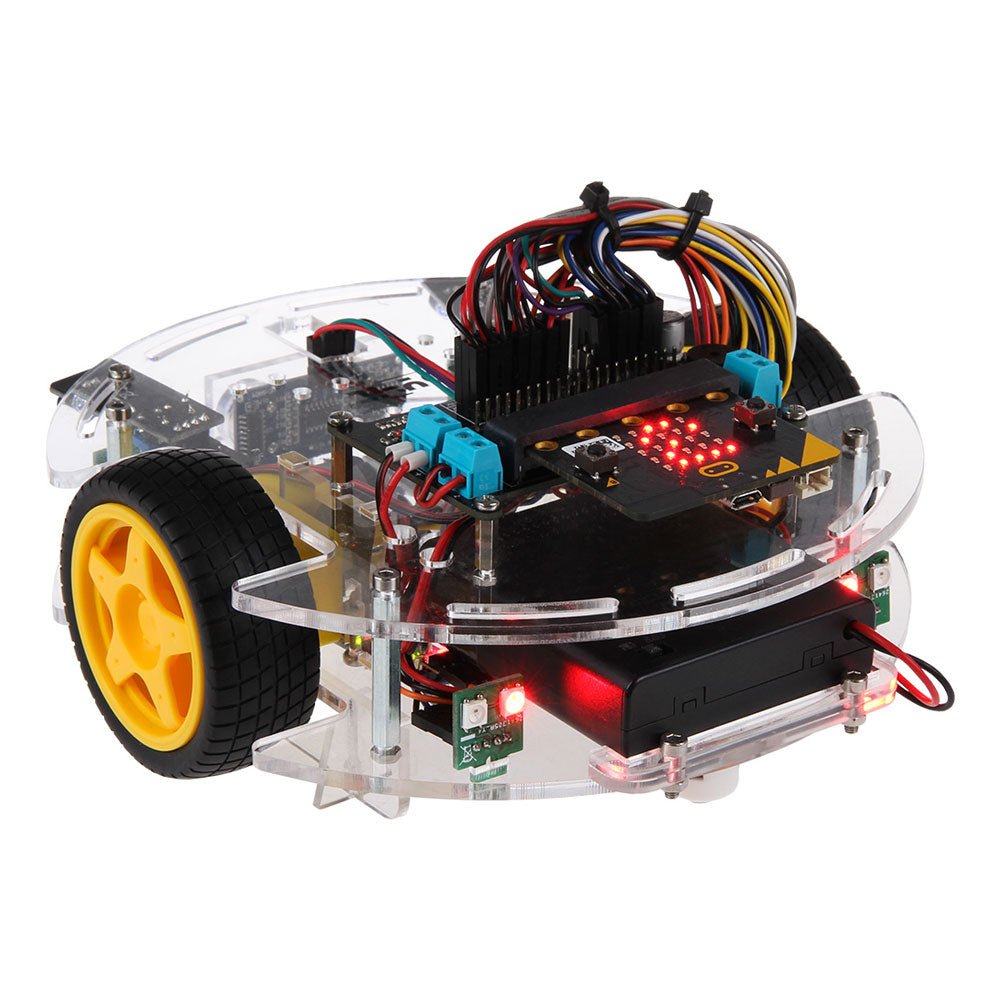

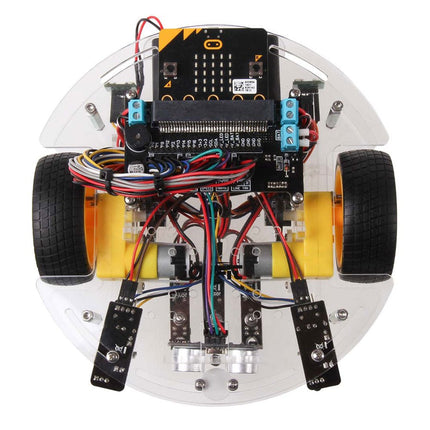

The Joy-Car is an autonomous robot based on micro:bit and offers a modular robotics learning kit. With the help of the detailed manual, all assemblies and their functions as a whole machine are explained, as well as details of programming and codes.
Sensors such as line tracking, ultra sonic, infrared and wheel speed sensors provide functions such as autonomous driving and even the control via Bluetooth via a second, separate micro:bit.
The additional equipment simulates indicators, lights, reversing light and horn, thus complement the experience of an autonomous robot car. With addressable LEDs, individual lighting scenarios can also be realized.
Specifications
Power Supply
- 4x AA batteries
- Alternatively: 4.5-9 VDC
Functions & Features
- Learning the individual components as a whole machine
- Suitable from 9 years on, ideal for school purposes
- Detailed instructions for programming including codes
- Programming languages: Micro:Python and MakeCode
- Autonomous driving by line finder, ultrasonic and infrared
- BT-control via separate 2nd micro:bit possible
- Simulation of indicators, lights, reversing light and horn
- Compatible with micro:bit v1 and v2
Included sensors
- 2x Speed sensor
- 3x Line tracking sensor
- 1x Ultrasonic sensor
- 2x Obstacle sensor
Included electronic assembly
- 1x Joy-Car mainboard
- 2x Gear motor
- 2x Servo motor
- 4x LED board
- 1x Battery case
Dimensions
Included items
- Joy-Car Acryl Kit
- Sensors
- Electronics assembly
- Mounting material
- Connection cables
Required
Downloads
Website
