Omschrijving
The X-Carve CNC machine is great for Makers looking to start their CNC journey. Reliable, customizable, and expandable: X-Carve is also the best-selling machine for entrepreneurs and small businesses.
Start producing, no CNC knowledge required. X-Carve and Easel simplify 3D carving so you can begin working with wood, plastics and other materials in minutes.
Features
- Carves wood, plastics, and materials like aluminum, Corian®?, and linoleum up to 37 inches wide.
- Easy-to-follow assembly instructions will help familiarize you with your machine.
- This model V2 is 3x faster, more rigid, and more accurate than the original X-Carve.

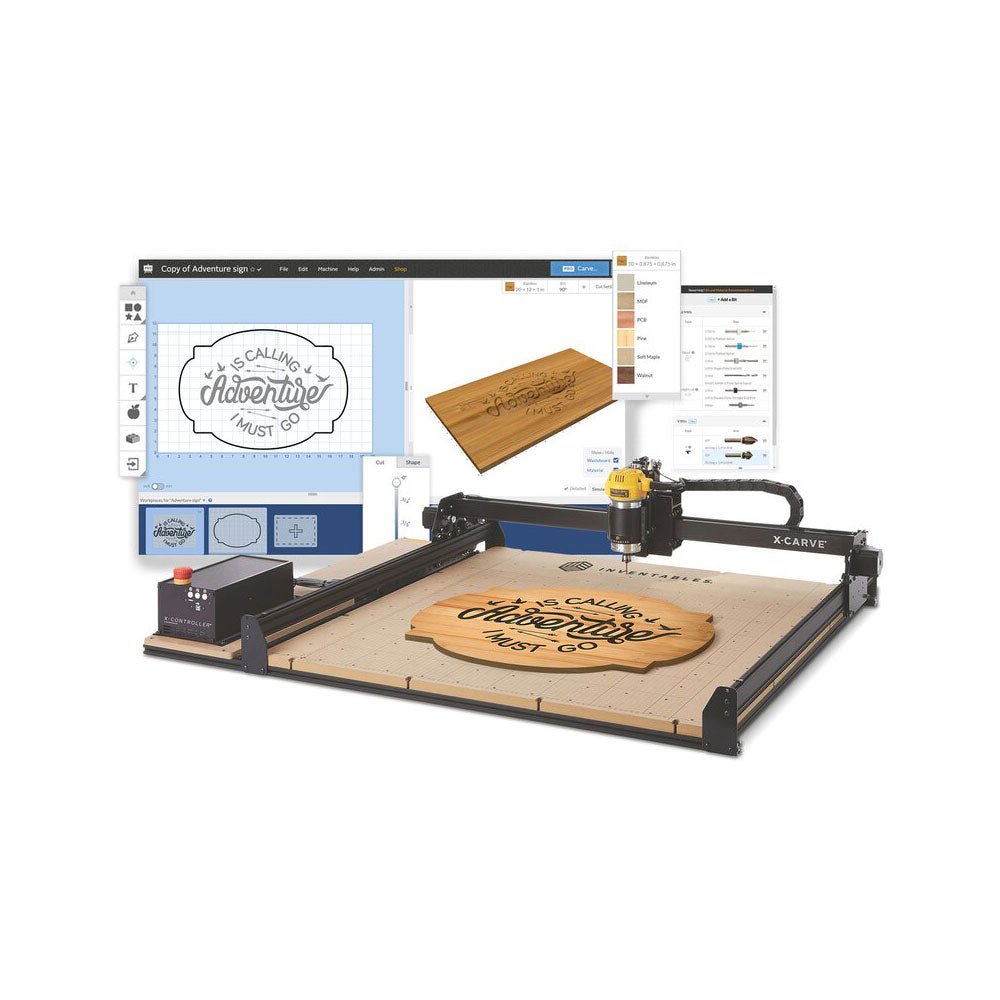

Design -> Carve -> Sell
- Design: Sketch out your own idea and upload to Easel software, or browse from the library of over 3 million designs.
- Carve: Easel controls the spindle and makes calculations so there's no guesswork.
- Sell: X-Carve + Easel speeds up production so you can take on more jobs and get them out faster. The bundle pays for itself in no time.
Carvable Materials
- Wood/Wood Composites: Hardwoods, softwoods, MDF, plywoods, etc.
- Plastics: HDPE, Delrin®?, polycarbonate, acrylic, Corian®?, etc.
- Non-Ferrous Metals: Aluminum, brass, copper, etc.
- Import File Types: G-Code, SVG, or DXF files from any software
Software
- Compatible with standard g-code and GRBL
- 1 Year of Easel Pro Included (world’s easiest CAD/CAM software)

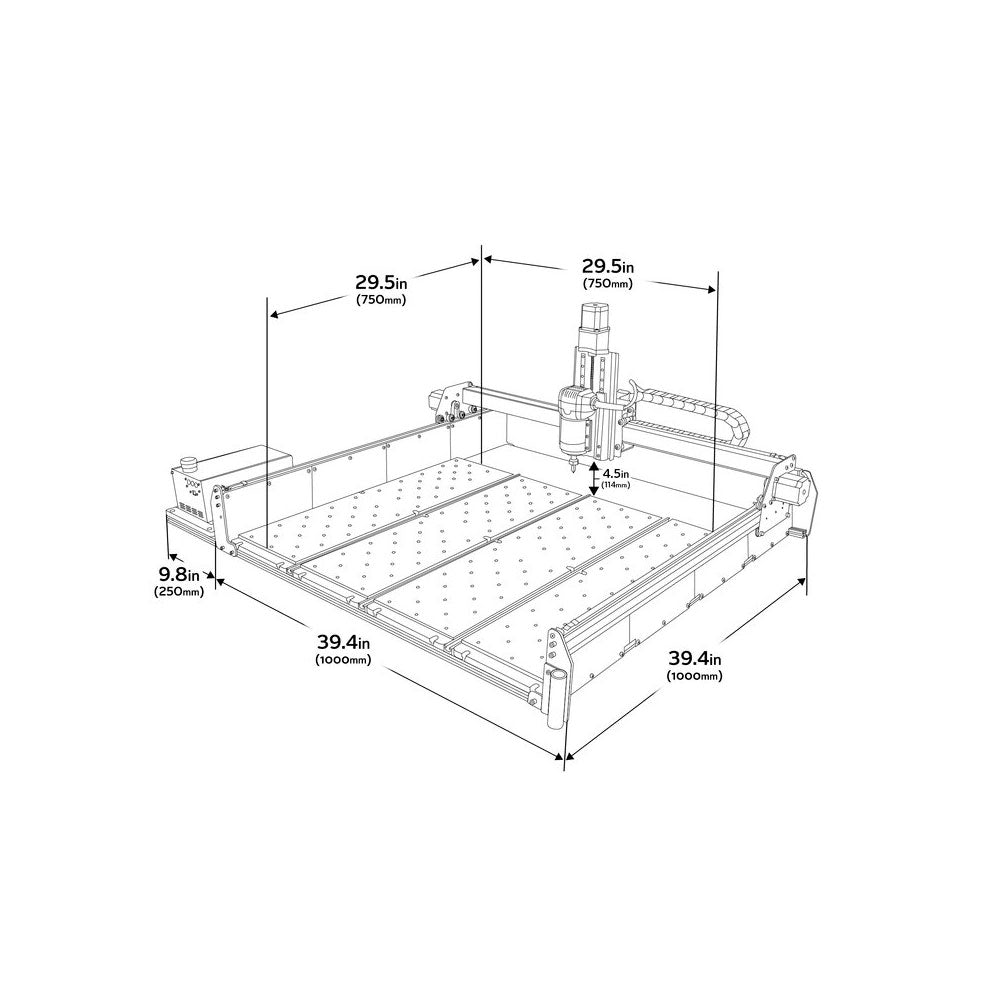

Size & Weight
- Work Area: 750 x 750 x 114 mm (29.5 x 29.5 x 4.5')
- Machine Footprint: 1041 x 1321 x 559 mm (41 x 52 x 22')
- Maximum Passthrough Sheet Width: 940 mm (37')
- Finish: Anodized Aluminum
- Product Weight: 45 kg
- Shipping Weight: 50 kg
Included
- X-Carve Base & Hardware
- Rail Kit
- DeWalt 26200 Spindle
- X-Controller Kit
- Nema 23 Motors Kit
- Waste Board
- Drag Chain
- Toolkit
- Homing Kit
- Z-Probe Kit
- Side Board
- Dust Control System
- Clamp Set
- Digital Calipers
- 1 Year Easel Pro Software
