Het projectenboek, geschreven door de bekende Elektor auteur Dogan Ibrahim, bevat vele software- en hardware-gebaseerde projecten die speciaal ontwikkeld zijn voor de Arduino Uno experimenteerkit. De kit wordt geleverd met een Arduino Uno R4 Minima, diverse LEDs, sensoren, actuatoren, en andere componenten. De bedoeling van de kit is om snel een begin te maken met de hardware en software aspecten van projecten die rond het Arduino-microcontrollersysteem zijn ontworpen.

De in deze gids gegeven projecten zijn volledig getest en werkend en maken volledig gebruik van alle geleverde componenten. Voor elk project in de gids wordt een blokschema, een schema van de schakeling, een uitgebreide programma-lijst en een volledige programma-beschrijving gegeven.

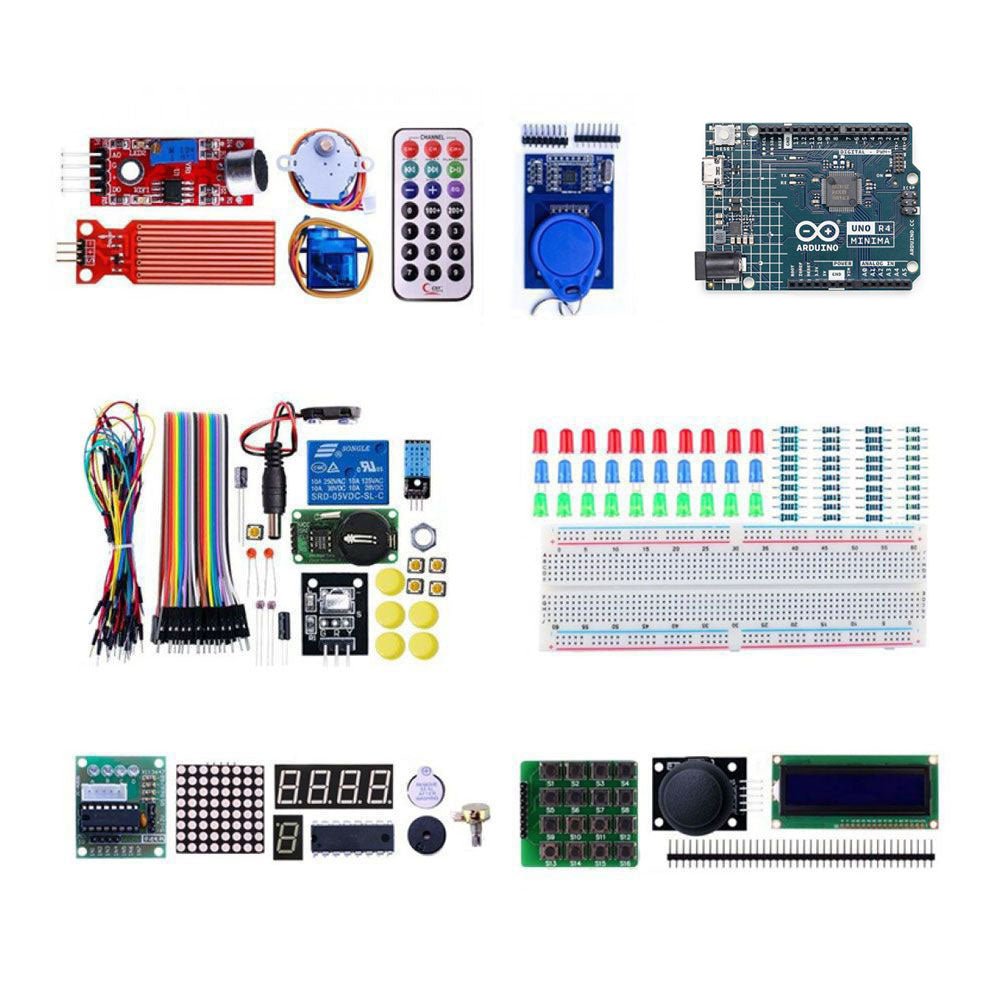

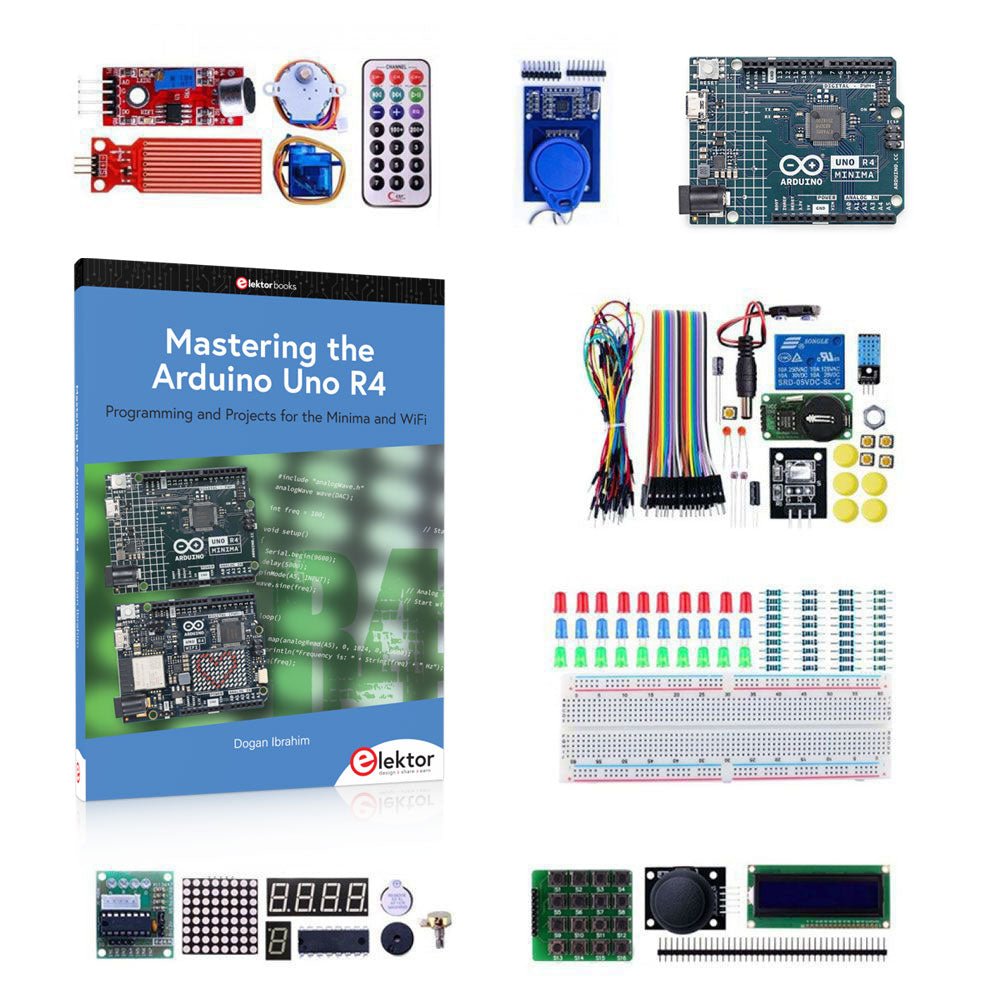

Inbegrepen in de kit

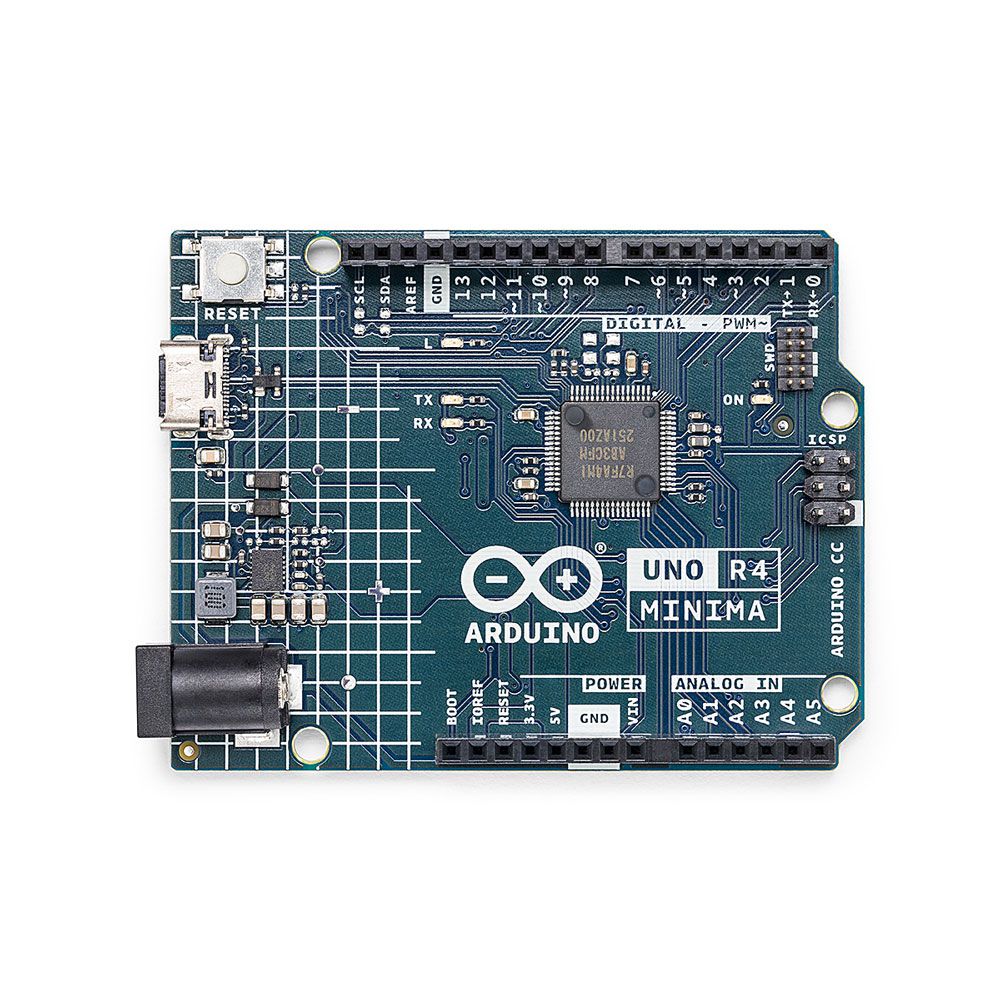

1x Arduino Uno R4 Minima
1x RFID lezer module
1x DS1302 RTC module
1x 5 V stappenmotor
1x "2003" stappenmotor aanstuurprint
5x Groene LED
5x Gele LED
5x Rode LED
2x Tuimelschakelaar
1x Vlammensensor
1x LM35 sensor module
1x Infrarood ontvanger
3x Lichtafhankelijke weerstanden (LDR's)
1x IR afstandsbediening
1x Breadboard
4x Drukknop (met vier kapjes)
1x Zoemer
1x Piëzo signaalgever
1x Regelbare weerstand (potentiometer)
1x 74HC595 schuifregister
1x 7-segment display
1x 4-cijferig 7-segment display
1x 8x8 dot-matrix display
1x 1602 / I²C LCD module
1x DHT11 temperatuur- en luchtvochtigheidsmodule
1x Relaismodule
1x Geluidsmodule
10x Dupont kabel (20 cm)
20x Breadboard kabel (15 cm)
1x Water sensor
1x PS2 joystick
5x 1 k-ohm weerstand
5x 10 k-ohm weerstand
5x 220-ohm weerstand
1x 4x4 toetsenbord module
1x 9g servo (25 cm)
1x RFID kaart
1x RGB module
2x Jumper kapje
1x 0,1 inch steekpen
1x 9 V batterij DC aansluiting
Projectboek (Engelstalig, 326 pagina's)

Maar liefst 80 projecten in het boek

Hardware Projects with LEDs

Blinking LED – using the on-board LED
Blinking LED – using an external LED
LED flashing SOS
Alternately blinking LEDs
Chaser-LEDs
Chasing LEDs 2
Binary counting LEDs
Random flashing LEDs – Christmas lights
Button controlled LED
Controlling the LED flashing rate – external interrupts
Reaction timer
LED color wand
RGB fixed colors
Traffic lights
Traffic lights with pedestrian crossings
Using the 74HC595 shift register – binary up counter
Using the 74HC595 shift register – random flashing 8 LEDs
Using the 74HC595 shift register – chasing LEDs
Using the 74HC595 shift register – turn ON a specified LED
Using the 74HC595 shift register – turn ON specified LEDs

7-Segment LED Displays

7-Segment 1-digit LED counter
7-Segment 4-digit multiplexed LED display
7-Segment 4-digit multiplexed LED display counter – timer interrupts
7-Segment 4-digit multiplexed LED display counter – blanking leading zeroes
7-Segment 4-digit multiplexed LED display – reaction timer
Timer interrupt blinking onboard LED

Liquid Crystal Displays (LCDs)

Display text on the LCD
Scrolling text on the LCD
Display custom characters on the LCD
LCD based conveyor belt goods counter
LCD based accurate clock using timer interrupts
LCD dice

Sensors

Analog temperature sensor
Voltmeter
On/Off temperature controller
Darkness reminder – using a light-dependent resistor (LDR)
Tilt detection
Displaying water level
Water level controller
Water flooding detector with buzzer
Sound detection sensor – control the relay by clapping hands
Flame sensor – fire detection with relay output
Temperature and humidity display
Generating musical tones – melody maker

The RFID Reader

Finding the Tag ID
RFID door lock access with relay

The 4x4 Keypad

Display the pressed key code on the Serial Monitor
Integer calculator with LCD
Keypad door security lock with relay

The Real-Time Clock (RTC) Module

RTC with Serial Monitor
RTC with LCD
Temperature and humidity display with time stamping
Setting and displaying the current time
Periodic interrupt every 2 seconds

The Joystick

Reading analog values from the joystick

8x8 LED Matrix

Displaying shapes

Motors: Servo and Stepper

Test-rotate the servo
Servo sweep
Joystick-controlled servo
Rotate the motor clockwise and then anticlockwise

The Digital to Analog Converter (DAC)

Generating a square wave with 2 V amplitude
Generate a sine wave
Sine wave sweep frequency generator
Generate sine wave whose frequency changes with potentiometer
Generate a square wave with frequency of 1 kHz and amplitude of 1 V

Using the EEPROM, the Human Interface Device, and PWM

Keyboard control to launch Windows programs
LED dimming using PWM

The Arduino Uno R4 WiFi

Using LED matrix 1 – creating a large + shape
Creating images by setting bits
Using LED matrix 2 – creating a large + shape
Animation – displaying a word
Controlling the Arduino Uno R4 WiFi on-board LED from a smartphone using UDP

Serial Communications

Receiving ambient temperature from an Arduino Uno R3

Using an Arduino Uno Simulator

A simple project simulation – flashing LED
Displaying text on LCD
LCD seconds counter

The CAN bus

Arduino Uno R4 WiFi to Arduino Uno R4 Minima CAN bus communication
Sending the temperature readings over the CAN bus

Infrared Receiver and Remote Controller

Decoding the IR remote control codes
Remote relay activation/deactivation
Infrared remote stepper motor control
