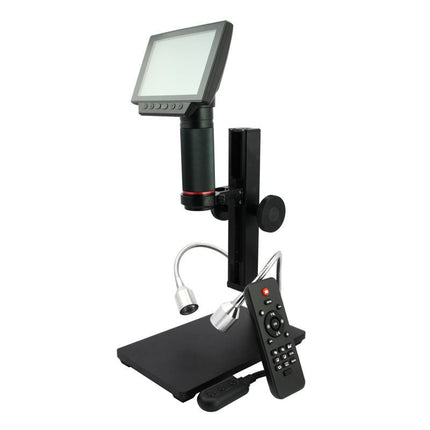

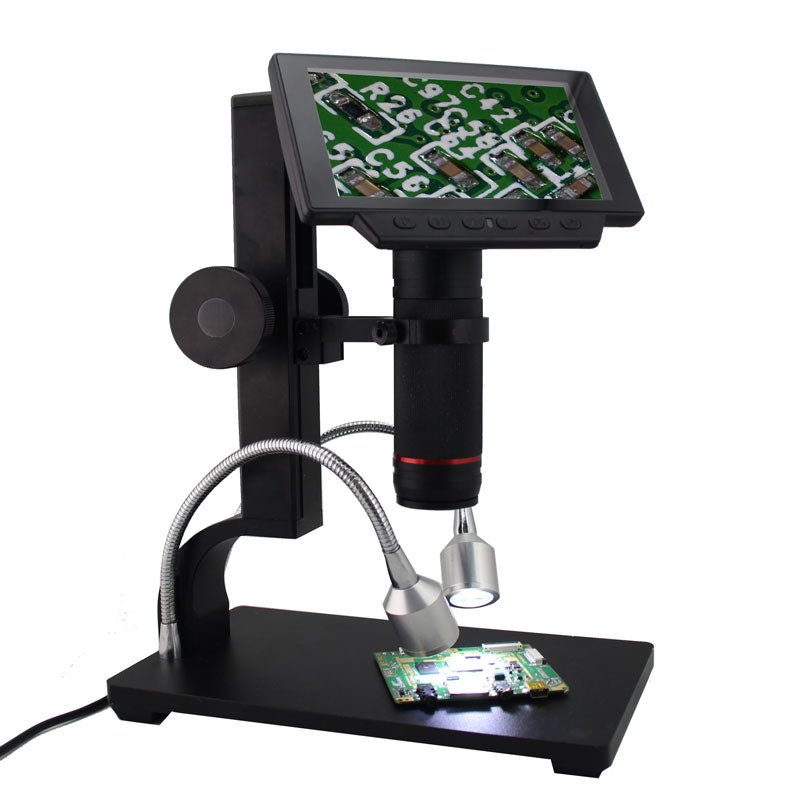

Andonstar ADSM302 5" HDMI Digital Microscope

  • FabrikantAndonstar

Omschrijving

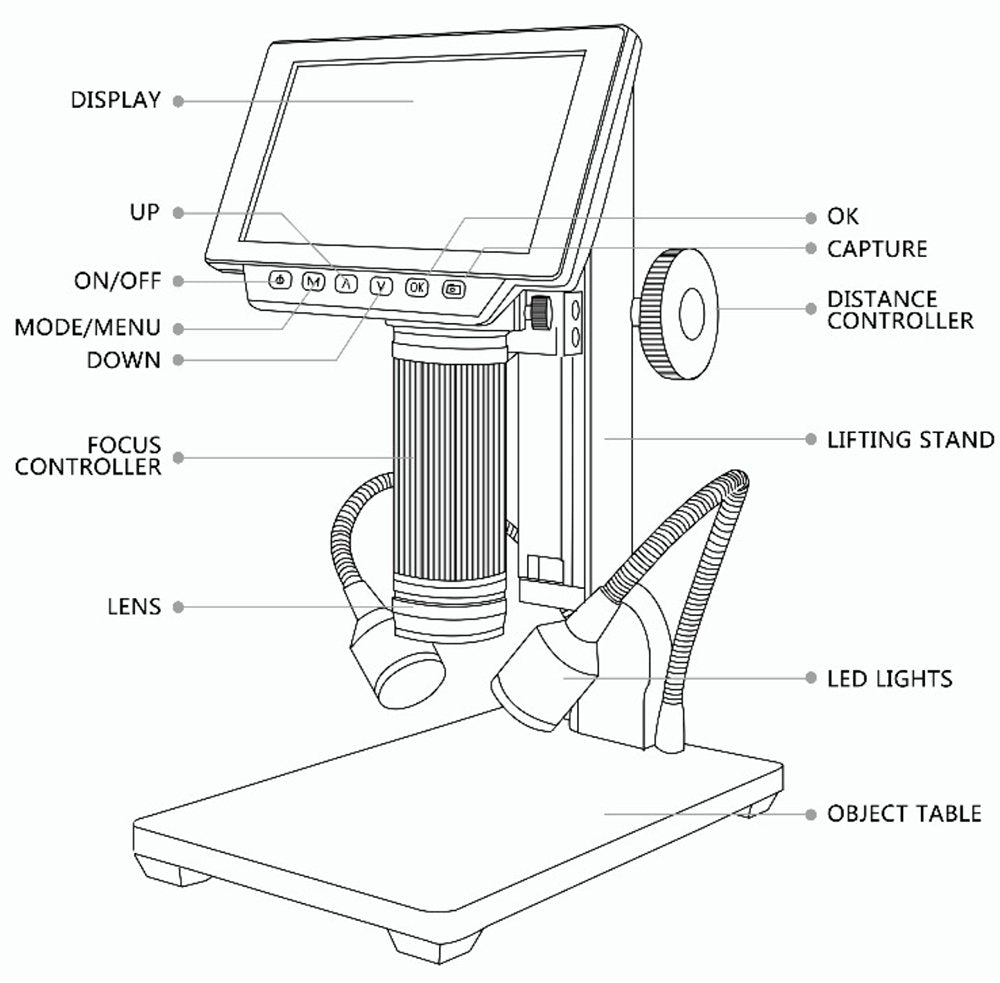

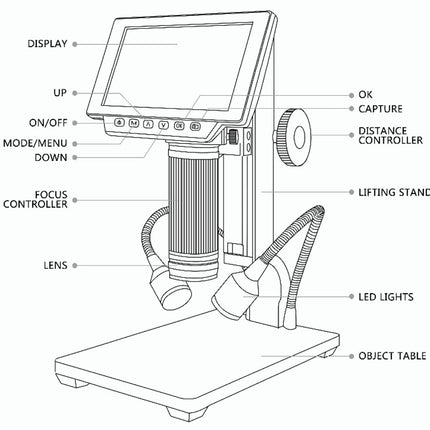

Features

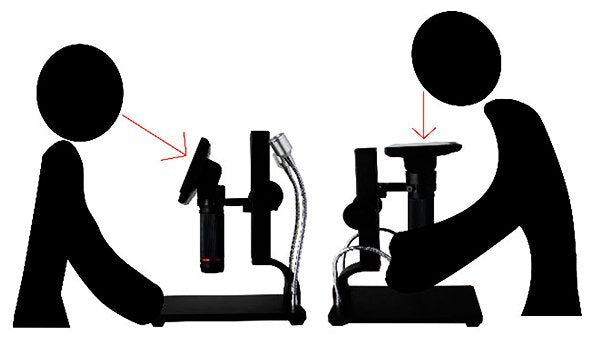

  • 5' adjustable LCD monitor with adjustable tilt angle
  • High resolution video & photo capture
  • Wide table with comfortable headroom
  • Heavy-weight stable metal stand
  • Tall lifting stand (26 cm)
  • Smooth adjustment wheels for focus and height

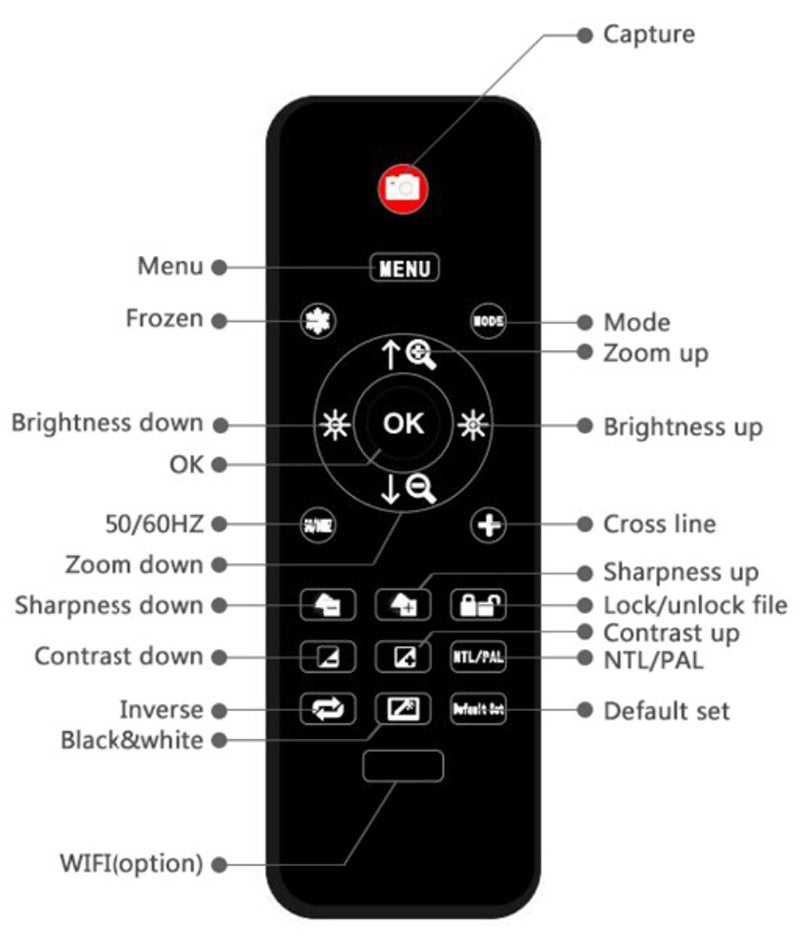

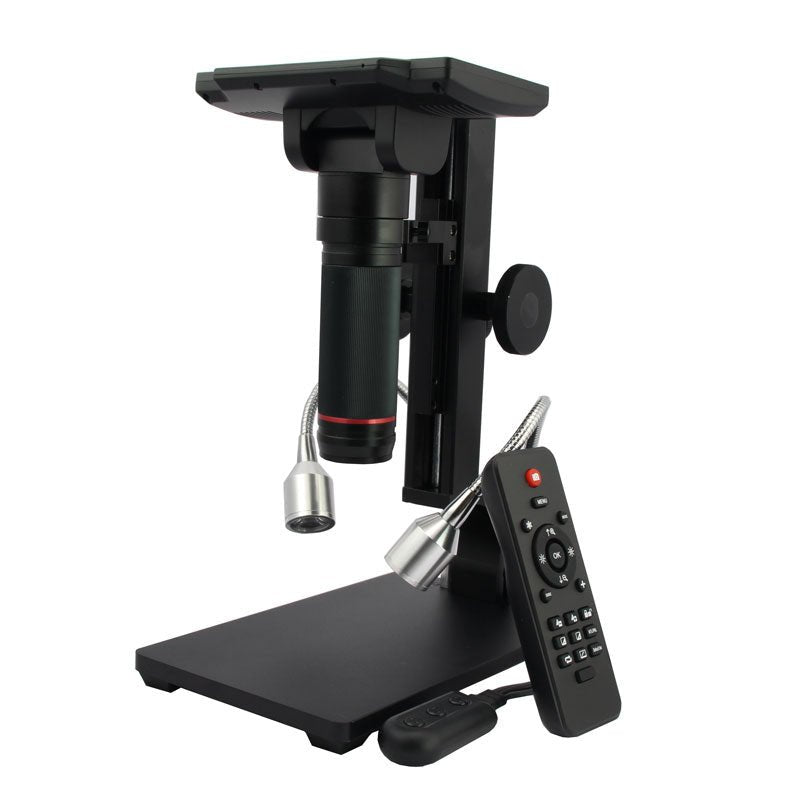

  • Buttons on the monitor + remote control
  • AV, USB, HDMI outputs
  • SD card storage <32 GB

Specifications

Image sensor 3 Megapixels HD Sensor
Video output 1080p Full HD (via HDMI)
720p (via PC)
Video format Real time play via HDMI w/o recording
MJPEG recording via PC/Mac Software
Magnification Up to 560 times (HDMI monitor 22')
Photo resolution 12M (see pixel formats in following table)
Photo format JPEG
Focus range 5 to 22 cm
Frame rate Up to 30 f/s under 600 Lux Brightness
Video-output interface HDMI/AV
Storage microSD card, up to 32 GB
PC support Windows XP/7/8/10
PC software with measurement
MacOS successfully tested under OSX with OBS
see video below
Power source 5 V DC
Light source 2x LED with the stand
Screen size 5 inch (12.7 cm)
Stand size 20 x 12 x 26.5 cm

Resolution

  • Captured Photos
    • 4032 x 3024
    • 3648 x 2736
    • 3264 x 2448
    • 2592 x 1944
    • 2048 x 1536
    • 640 x 480
    • 1920 x 1080
    • 1280 x 960
    • 1280 x 720*
  • Videos
    • 1920 x 1080
    • 640 x 480*

* (USB with software)

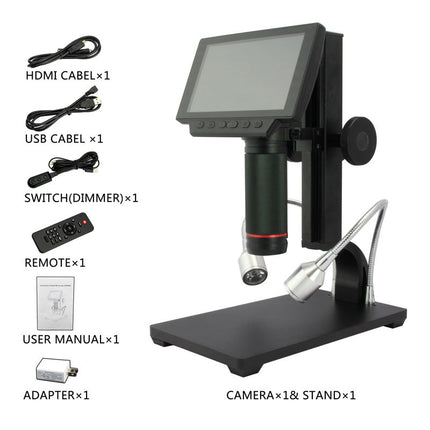

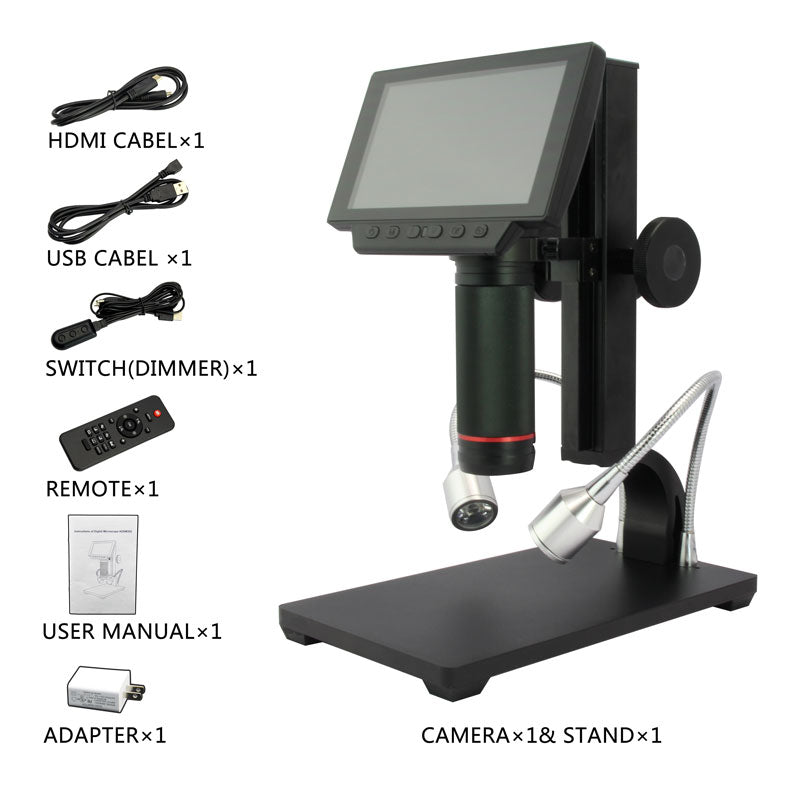

Included

  • 1x Andonstar ADSM302 digital microscope
  • 1x Metal stand with 2 LEDs
  • 1x USB cable
  • 1x HDMI cable
  • 1x Adapter
  • 1x AI remote
  • 1x Instructions

Downloads


Productformulier

Features 5' adjustable LCD monitor with adjustable tilt angle High resolution video & photo capture Wide table with comfortable headroom... Lees meer

€ 229,00€ 194,95 incl. BTW
Leden identiek

      Rond de feestdagen kan de verzending langer duren dan gebruikelijk.

    Details

    SKU: 18374
    EAN: 018374

    Omschrijving

    Features

    • 5' adjustable LCD monitor with adjustable tilt angle
    • High resolution video & photo capture
    • Wide table with comfortable headroom
    • Heavy-weight stable metal stand
    • Tall lifting stand (26 cm)
    • Smooth adjustment wheels for focus and height
    • Buttons on the monitor + remote control
    • AV, USB, HDMI outputs
    • SD card storage <32 GB

    Specifications

    Image sensor 3 Megapixels HD Sensor
    Video output 1080p Full HD (via HDMI)
    720p (via PC)
    Video format Real time play via HDMI w/o recording
    MJPEG recording via PC/Mac Software
    Magnification Up to 560 times (HDMI monitor 22')
    Photo resolution 12M (see pixel formats in following table)
    Photo format JPEG
    Focus range 5 to 22 cm
    Frame rate Up to 30 f/s under 600 Lux Brightness
    Video-output interface HDMI/AV
    Storage microSD card, up to 32 GB
    PC support Windows XP/7/8/10
    PC software with measurement
    MacOS successfully tested under OSX with OBS
    see video below
    Power source 5 V DC
    Light source 2x LED with the stand
    Screen size 5 inch (12.7 cm)
    Stand size 20 x 12 x 26.5 cm

    Resolution

    • Captured Photos
      • 4032 x 3024
      • 3648 x 2736
      • 3264 x 2448
      • 2592 x 1944
      • 2048 x 1536
      • 640 x 480
      • 1920 x 1080
      • 1280 x 960
      • 1280 x 720*
    • Videos
      • 1920 x 1080
      • 640 x 480*

    * (USB with software)

    Included

    • 1x Andonstar ADSM302 digital microscope
    • 1x Metal stand with 2 LEDs
    • 1x USB cable
    • 1x HDMI cable
    • 1x Adapter
    • 1x AI remote
    • 1x Instructions

    Downloads


    Customer Reviews

    Based on 2 reviews
    50%
    (1)
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    D
    Dave L.
    Great Microscope

    First, I purchased the Koolertron 7 inch Lcd microscope. For the cost, it`s a good entry level microscope. But it lacks the HDMI output. Still it has a nice lcd screen. I just purchased the ADSM302. I am using it my work for Electronics. Even though it only has a 5 inch screen. It is more like a high dollar microscope. I`m very impressed with the screen resolution. Very impressed when hooked up to a 20 inch monitor through the HDMI. the base is heavy and strong. The led lights put out sufficient light. There is plenty of working space. There are many different focal lengths you can adjust. You can record or take snapshots and save to sd card or PC. The remote is a nice feature to have if you don`t want to move what you are viewing. All in all. This is a very good microscope for the money. If your looking, this is the one.

    J
    Joost
    ANDONSTAR ADSM302

    The best digital microscope I ever had. Very clear image due the good lighting. Heavy base plate to keep everything stable. The software is not very useful though. Although it is not cheap, it is worth the money.
