Raspberry Pi Accessories

The 16 mm lens provides a higher quality image than the 6 mm lens. It has a narrow angle of view which is more suited to viewing distant objects. Specifications Resolution 10 MegaPixel Image format 1' Focal length 16 mm Aperture F1.4-16 Mount C Field Angle 1'Field Angle 2/3'Field Angle 1/1.8'Field Angle 1/2' 44.6° × 33.6°30.0° × 23.2°24.7° × 18.6°21.8° × 16.4° Back Focal Length 17.53 mm Optical Length 67.53 mm Distortion 1'(-0.7%) 1/2'(-0.5%) 1/3'(-0.15%) M.O.D. 0.2 m Dimension 39 × 50 mm Weight 133.7 g

Lees meer minder

Het boek “Sensoren aan de Raspberry Pi” richt zich tot iedereen die zich wil verdiepen in een Raspberry Pi 2 of 3 in combinatie met Windows 10 IoT Core. Dit besturingssysteem biedt samen met een RPi weliswaar veel rekenkracht, maar voor de communicatie met de buitenwereld zijn nog externe modules en sensoren nodig. Daartoe wordt in dit boek gebruik gemaakt van een sensor-kit met 35 modules die nog geen 60 euro kost.Auteur Florian Schäffer begint zijn boek met de introductie van de Raspberry Pi en hij beschrijft welke hardware u nodig hebt om met de RPi te kunnen werken. Dan volgt een eerste kennismaking met Windows 10 IoT Core. Daarna wordt dieper ingegaan op het gebruik van Visual Studio 2015 en worden de eerste programmeervoorbeelden beschreven. Ook wordt uitgelegd hoe een MySQL-databank kan worden aangestuurd via een app en hoe de Rpi2 als webserver kan worden ingezet.In het tweede deel worden de sensoren stuk voor stuk beschreven met hun eigenschappen en worden er veel toepassingsvoorbeelden gegeven. De source-codes van de programma’s zijn als download bij het boek beschikbaar. Tot slot wordt nog aandacht besteed aan het gebruik van druktoetsen en schakelaars, en het werken met digitale uitgangen en analoge ingangen.

Lees meer minder

The active cooler provides an alternative cooling solution for users who wish to use their Raspberry Pi 5 under sustained heavy load without a case. It combines a large metal heatsink with a variable-speed blower, again powered and controlled via the fan connector, and attaches to the Raspberry Pi 5 via sprung pins into a pair of mounting holes.

Lees meer minder

5 V/2 A Micro-USB Voeding (EU)

Lees meer minder

The default configuration holds a mini breadboard (included), an SD card adapter, 2x micro SD cards, 2x USB devices, a micro-USB shim and of course the Raspberry Pi Zero itself.Users can decide to use the micro-USB shim slot to hold a micro-HDMI adapter, or you may want to hold a Portsplus or similar GPIO reference card in the SD adapter slot. You can choose to store your USB micro-SD card reader or even other larger USB devices such as the USBDoctor. Use it in whatever way works best for you.All of the Raspberry Pi Zero ports are accessible from the ZeroDock, including the camera port and reset/composite pin header. pHATs are also not obstructed, so you’re free to prototype with your favourite add-on boards.The case is a stylish mix of clear and black acrylic layers, black fixings and a clear breadboard, fitting in well alongside most desktop PCs/monitors.Assembly guide available here.Kit includes 4 layer laser-cut acrylic case Case and Raspberry Pi fixings Mini breadboard

Lees meer minder

High quality aluminium case for Raspberry Pi 4 with integrated heatsink to prevent thermal throttling.

Lees meer minder

No more searching for micro-SD cards, SD adapters, USB-C adapters or USB devices. It’s all here, every time you’re ready to prototype a project, in one neat and tidy package.Our example configuration holds your Raspberry Pi 4, a 400-point clear breadboard, 4 micro-SD cards, an SD-adapter, 4x USB devices and 2x universal slots (great for USB-C adapters or anything else you want to store).You can of course use the storage slots for whatever you like... Customise it and use it in whatever way works best for you!Despite sitting flush with the top glass-effect acrylic layer of the dock, all of the Raspberry Pi’s ports are accessible, including access to the micro-SD slot. HATs can also be fitted.The dock is made up of 4 slick, sandwiched layers of matte black and glass-effect laser-cut acrylic! A really stunning and useful home for your Raspberry Pi and projects!Assembly guide available here.Kit includes 4 layer laser-cut acrylic dock 400-point clear breadboard Fixings and spacers

Lees meer minder

Raspberry Pi Pico Breadboard Kit helps the user to configure GPIO of Raspberry Pi Pico for use with external devices.Raspberry Pi Pico Breadboard Kit is a multi-purpose Kit that consists of a “400 points half-size breadboard” on top, a Programmable Buzzer, 4 programmable LEDs, 4 push buttons, and dedicated 5 V, 3V3, and GND pins at a single place. SB Components developed Raspberry Pi Pico Breadboard Kit with advanced features like independently controllable LEDs, Switches, a 400 points half-size breadboard that helps the user to prototype their projects with Raspberry Pi Pico in an efficient way.Raspberry Pi Pico Breadboard Kit can be interfaced with Raspberry Pi Pico from which a user can run electronics experiments, prototypes, mini robots, games, interact with Linux-ready Raspberry Pi, Exploration of circuits, etc. One can also connect external components with the breadboard provided on the top of the Raspberry Pi Pico Breadboard Kit.Features Four independent controlled LEDs Four independent controlled push buttons Compatible with Pico A 400 points half size breadboard Programmable buzzer Dedicated 5 V, 3V3 and Gnd pins for easy use Specifications Operating voltage 3.3 VDC Communication interface GPIO Dimensions 85 x 133 mm Applications Electrical experiments Prototypes Mini robots Games Exploration of circuits Downloads Manual Example codes Circuit diagram GitHub Included 1x Pico Breadboard Kit 5x Male to Male Jumper Wires 5x Female to Female Jumper Wires 5x Male to female Jumper Wires Note: Raspberry Pi Pico is not included.

Lees meer minder

This lens is suitable for basic photography. It can also be used for macro photography because it can focus objects at very short distances. Specifications Image format 1/2' Focal length 6 mm Resolution 3 MegaPixel Aperture F1.2 Mount CS Field Angle 63° M.O.D. 0.2 m Back Focal Length 7.53 mm Dimension 30 x 34 mm Weight 53 g

Lees meer minder

Multitasking and multiprocessing have become a very important topic in microcontroller-based systems, namely in complex commercial, domestic, and industrial automation applications. As the complexity of projects grows, more functionalities are demanded from the projects. Such projects require the use of multiple inter-related tasks running on the same system and sharing the available resources, such as the CPU, memory, and input-output ports. As a result of this, the importance of multitasking operations in microcontroller-based applications has grown steadily over the last few years. Many complex automation projects now make use of some form of a multitasking kernel.This book is project-based and its main aim is to teach the basic features of multitasking using the Python 3 programming language on Raspberry Pi. Many fully tested projects are provided in the book using the multitasking modules of Python. Each project is described fully and in detail. Complete program listings are given for each project. Readers should be able to use the projects as they are, or modify them to suit their own needs.The following Python multitasking modules have been described and used in the projects: Fork Thread Threading Subprocess Multiprocessing The book includes simple multitasking projects such as independently controlling multiple LEDs, to more complex multitasking projects such as on/off temperature control, traffic lights control, 2-digit, and 4-digit 7-segment LED event counter, reaction timer, stepper motor control, keypad based projects, car park controller, and many more. The fundamental multitasking concepts such as process synchronization, process communication, and memory sharing techniques have been described in projects concerning event flags, queues, semaphores, values, and so on.

Lees meer minder

Soldeerloos breadboard gelabeld voor de Raspberry Pi Pico Het kan lastig zijn om uit te zoeken welke pin welke is wanneer de Raspberry Pi Pico is bevestigd op een soldeerloos breadboard. Het MonkMakes Breadboard voor Pico lost dit probleem op door de Pico pinnen te labelen op het 400 point soldeerloos breadboard. Features 400 verbindingspunten 2 stroombussen Afmeting: 8,2 x 5,5 x 0,85 cm Zelfklevende achterkant

Lees meer minder

This aluminium-based Armor Case is perfect for your Raspberry Pi 4 if it gets hot, as this protects it against shocks and heat equally. Channel milling combined with dual fans offers best cooling performance. That‘s why it is suitable for extreme settings. Another benefit is that this case does not need more space than the Raspberry Pi itself and can be integrated in existing projects.Features Material: CNC milled aluminium alloy Compatible with Raspberry Pi 4B Assembly: 4 included screws connect the case to the Raspberry Pi Special features: Large heat sink and dual fan each Ø24 mm, massive protection against heat and shocks, no additional space needed Wiring: Fan 5V (Red) - 5V (Pin4), Fan GND (Black) - GND (Pin6) Scope of delivery: Armor case “BLOCK ACTIVE”, screws, thermal tape Size top side: 69 x 56 x 15.5 mm Size bottom side: 87 x 56 x 7.5 mm DownloadsManual

Lees meer minder

3rd Edition – Fully updated for Raspberry Pi 4The Raspberry Pi is a very cheap but complete computer system that allows all sorts of electronics parts and extensions to be connected. This book addresses one of the strongest aspects of the Raspberry Pi: the ability to combine hands-on electronics and programming.Combine hands-on electronics and programmingAfter a short introduction to the Raspberry Pi you proceed with installing the required software. The SD card that can be purchased in conjunction with this book contains everything to get started with the Raspberry Pi. At the side of the (optional) Windows PC, software is used which is free for downloading. The book continues with a concise introduction to the Linux operating system, after which you start programming in Bash, Python 3 and Javascript. Although the emphasis is on Python, the coverage is brief and to the point in all cases – just enabling you to grasp the essence of all projects and start adapting them to your requirements. All set, you can carry on with fun projects.The book is ideal for self-studyNo fewer than 45 exciting and compelling projects are discussed and elaborated in detail. From a flashing lights to driving an electromotor; from processing and generating analog signals to a lux meter and a temperature control. We also move to more complex projects like a motor speed controller, a web server with CGI, client-server applications and Xwindows programs.Each project has details of the way it got designed that wayThe process of reading, building, and programming not only provides insight into the Raspberry Pi, Python, and the electronic parts used, but also enables you to modify or extend the projects any way you like. Also, feel free to combine several projects into a larger design.

Lees meer minder

De Coral USB Accelerator voegt een Edge TPU coprocessor toe aan uw systeem. Het simpelweg aansluiten van deze accelerator op een USB poort maakt high-speed machine learning inferencing op een breed scala aan systemen mogelijk. Kenmerken Ondersteunde host OS: Debian Linux, macOS, Windows 10 Compatible met Raspberry Pi boards Ondersteund Framework: TensorFlow Lite Voert high-speed ML inferencing uit De on-board Edge TPU-coprocessor is in staat om 4 biljoen bewerkingen (tera-operations) per seconde (TOPS) uit te voeren, met behulp van 0,5 watt voor elke TOPS (2 TOPS per watt). Hij kan bijvoorbeeld op een energiezuinige manier state-of-the-art mobile vision modellen, zoals MobileNet v2, uitvoeren met bijna 400 FPS. Ondersteunt alle belangrijke platforms Werkt via een USB poort met elk systeem met Debian Linux (inclusief Raspberry Pi), macOS of Windows 10. Ondersteunt TensorFlow Lite Het is niet nodig om modellen van de grond af aan op te bouwen. TensorFlow Lite modellen kunnen worden gecompileerd om op de Edge TPU te worden uitgevoerd. Ondersteunt AutoML Vision Edge Bouw en implementeer, eenvoudig en op maat, snelle en uiterst nauwkeurige image classification modellen op uw apparaat met AutoML Vision Edge. Specificaties ML accelerator Google Edge TPU coprocessor:4 TOPS (int8); 2 TOPS per watt Connector USB 3.0 Type-C (data/power) Dimensies 65 x 30 mm Downloads/Documentatie Datasheet Get started with the USB Accelerator Model compatibility on the Edge TPU Edge TPU inferencing overview Run multiple models with multiple Edge TPUs Pipeline a model with multiple Edge TPUs PyCoral API (Python) Libcoral API (C++) Libedgetpu API (C++) Edge TPU compiler Pre-compiled models All software downloads

Lees meer minder

The robust plastic housing made of acrylic convinces by modern design and technical innovation. The only distinguishing feature is the new locking mechanism of this housing. It can be assembled in a few steps and the magnetic lock provides easy access to the GPIO pins and the Raspberry Pi 4 B at any time. Thanks to the strong magnets in the upper, middle and lower part of this housing, screw-less mounting is possible. So the cover can be removed at any time. The two integrated fans and the included heat sinks provide a constant cooling of the Raspberry PI 4B. The JOY-iT Acrylic Case with Dual Fan will protect your Raspberry Pi 4 B against exterior impacts and excessive heat development. You can assemble the screwless case in just 4 clicks. The silent twin fans work reliably under high load. Features Material: Plastic Colour: Black and transparent Compatible with Raspberry Pi 4 B Special Features: Built-in dual fan Dimensions: 67 x 97 x 27 mm Weight: 154 g Downloads Datasheet Manual

Lees meer minder

Ready to explore the world around you? By attaching the Sense HAT to your Raspberry Pi, you can quickly and easily develop a variety of creative applications, useful experiments, and exciting games.The Sense HAT contains several helpful environmental sensors: temperature, humidity, pressure, accelerometer, magnetometer, and gyroscope. Additionally, an 8x8 LED matrix is provided with RGB LEDs, which can be used to display multi-color scrolling or fixed information, such as the sensor data. Use the small onboard joystick for games or applications that require user input. In Innovate with Sense HAT for Raspberry Pi, Dr. Dogan Ibrahim explains how to use the Sense HAT in Raspberry Pi Zero W-based projects. Using simple terms, he details how to incorporate the Sense HAT board in interesting visual and sensor-based projects. You can complete all the projects with other Raspberry Pi models without any modifications.Exploring with Sense HAT for Raspberry Pi includes projects featuring external hardware components in addition to the Sense HAT board. You will learn to connect the Sense HAT board to the Raspberry Pi using jumper wires so that some of the GPIO ports are free to be interfaced to external components, such as to buzzers, relays, LEDs, LCDs, motors, and other sensors.The book includes full program listings and detailed project descriptions. Complete circuit diagrams of the projects using external components are given where necessary. All the projects were developed using the latest version of the Python 3 programming language. You can easily download projects from the book’s web page. Let’s start exploring with Sense HAT.

Lees meer minder

The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico. With 3.5-inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on chip peripheral of the RP2040, eliminating the mess wiring. It is an ideal choice for user to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip. Features Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards 3.5-inch resistive touch screen, 65K colorful, bringing clear and vivid display effect Standard 3.5 mm audio jack, for headphone or other audio peripherals Micro SD card slot through the SDIO interface, faster access speed than SPI interface Integrates battery header and recharge circuit, allows it keep running without wired power supply Other rich resources like buzzer, photoresistor, and RGB LED... Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) LCD Specifications Operating voltage 5 V Resolution 480×320 Pixels Touch type resistive Display colors 65K colorful Communication bus SPI Display size 73.44 × 48.96 mm Display panel IPS Pixel size 0.153 × 0.153 mm Controller ILI9488/XPT2046 Dimension 86.00 × 57.20 mm

Lees meer minder

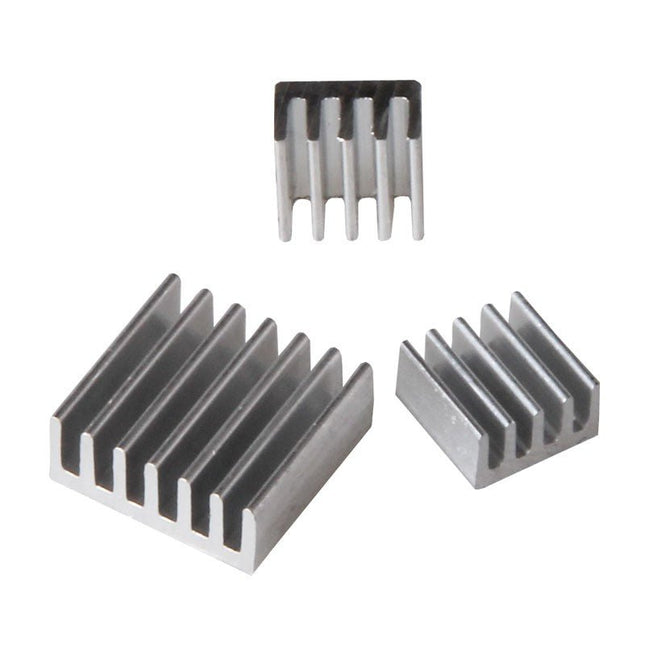

Aluminium Heatsink Set for Raspberry Pi with pre-applied tape for easy installation 1 piece: 14 x 15 x 5 mm 2 pieces: 8 x 8 x 5 mm

Lees meer minder

Features Standard Raspberry Pi Pico female header for direct attaching Raspberry Pi Pico (if male header soldered), or just through jumper wires Two sets of 2x20 male header, allows connecting more Raspberry Pi Pico expansion modules Clear pinout labels on the front side, easy to use Immersion gold process, beautiful & practical, stunning aesthetic looking

Lees meer minder

This anodised aluminium heatsink case will protect your Raspberry Pi 4 and give you very effective passive cooling. It's great in cases where you want completely silent cooling, for instance, if you're building a home media center. The scope of delivery includes a thermal pad to provide thermal contact between the CPU and top case, and a handy Allen key and set of hex bolts to attach the case together. The case gives you access to all of the ports, pins, and connectors. Features Anodised aluminium top and bottom case Heatsink fins Thermal pad Hex bolts and Allen key included Access to all ports, pins, and connectors Compatible with Raspberry Pi 4 Assembly Assembling your heatsink case is pretty easy and should only take a couple of minutes. The first, and most important thing is to make sure that your Pi is powered off and unplugged before you fit the case. Take one of the thermal pads and peel the protective films off both sides of it (there's a white film and an easy-to-miss clear film on the other side. Stick the thermal pad onto your Pi's CPU (the metal square nearest the middle of the PCB). Sticking the thermal pad to the CPU first is a much better way to position it correctly than trying to stick it to the case. Only use one thermal pad with the Raspberry Pi 4. Position the top case and then, holding it in place, flip the whole thing over and position the bottom case on the underside of your Pi. Use the four hex bolts and allen key to secure the case. Notes The case is metal and hence conductive, so be careful not to short any components on it, and ensure that your RPi is powered off and unplugged when fitting the case It may be obvious, but the case will get hot in use Dimensions: 87 × 56 × 25.5 mm

Lees meer minder

Features Simple slide angle adjustment Camera Module protection 'sandwich' plates Made from crystal clear laser-cut acrylic in the UK 1/4 inch hole for tripod mounting Stable 4-leg base Here you can find the Assembly Instructions.

Lees meer minder

USB-A to Micro USB-B power cable (power supply only) 1.5 m length with ON/OFF switch Add the ability to control the power to your USB-powered project simply by plugging a cable with a switch between the USB power port and the USB cable. There's no more need to pull the cable to restart or reboot your devices, just press the button to turn on and off, which helps to prevent the USB connector from wear and tear due to frequent pulling and inserting the USB cable. It can be used as a power supply up to 2 A. Not applicable for data transfer.

Lees meer minder

Het is mogelijk om Cytron 25Amp 7-58 V High Voltage DC Motor Driver aan te sturen met PWM en DIR inputs. De ingangsspanning varieert van 1,8 V tot 30 V en het bord is compatibel met verschillende host controllers (zoals Arduino, Raspberry Pi, PLC). Als u niet wilt programmeren om de motor aan te sturen, is er een optie om de motor driver aan te sturen met een potentiometer (snelheid) en een schakelaar (richting). U kunt de motor ook snel en gemakkelijk testen met de ingebouwde testknoppen en motoruitgangs-LED's zonder dat u de host-controller hoeft aan te sluiten. Het is mogelijk om de host controller te voeden met de buck regulator die een 5 V output produceert. Dit is vooral handig voor hoogspanning toepassingen waar geen extra voedingsbron of hoogspanning buck regulator nodig is. Deze motorbesturing is tevens voorzien van diverse beveiligingsfuncties. Als de motor afslaat of als u een te grote motor hebt aangesloten, zorgt de overstroombeveiliging ervoor dat de printplaat niet beschadigd raakt. Als de motor meer stroom probeert te trekken dan de motor driver kan ondersteunen, zal de motorstroom worden begrensd op de maximumdrempel. Geholpen door temperatuurbeveiliging, hangt de maximum stroombegrenzingsdrempel af van de temperatuur van de printplaat. Hoe hoger de temperatuur van de printplaat, hoe lager de stroombegrenzingsdrempel. Note: De stroomingang heeft geen beveiliging tegen omgekeerde spanning. Als de batterij in omgekeerde polariteit wordt aangesloten, zal de motoraandrijving onmiddellijk worden beschadigd. Functies Directionele aansturing voor één geborstelde DC-motor Bedrijfsspanning: DC 7 V tot 58 V Maximale motorstroom: 25 A continu, 60 A piek 5 V uitgang voor de host controller (250 mA max) Knoppen voor snel testen LED's voor status motoruitgang Dubbele ingangsmodus: PWM/DIR of potentiometer/schakelaar-ingang PWM/DIR-ingangen compatibel met 1,8 V, 3,3 V, 5 V, 12 V en 24 V logica (Arduino, Raspberry Pi, PLC, etc) PWM-frequentie tot 40 kHz (uitgangsfrequentie is vast ingesteld op 16 kHz) Overstroombeveiliging met actieve stroombegrenzing Temperatuurbeveiliging Onderspanning uitschakeling Werkingssfeer 1 × MD25HV (motorbesturingskaart) 1 × Potentiometer met connector 1 × Tuimelschakelaar met connector 4 × Nylon PCB Standoffs/Vacers Documenten Datasheet Staalcode
